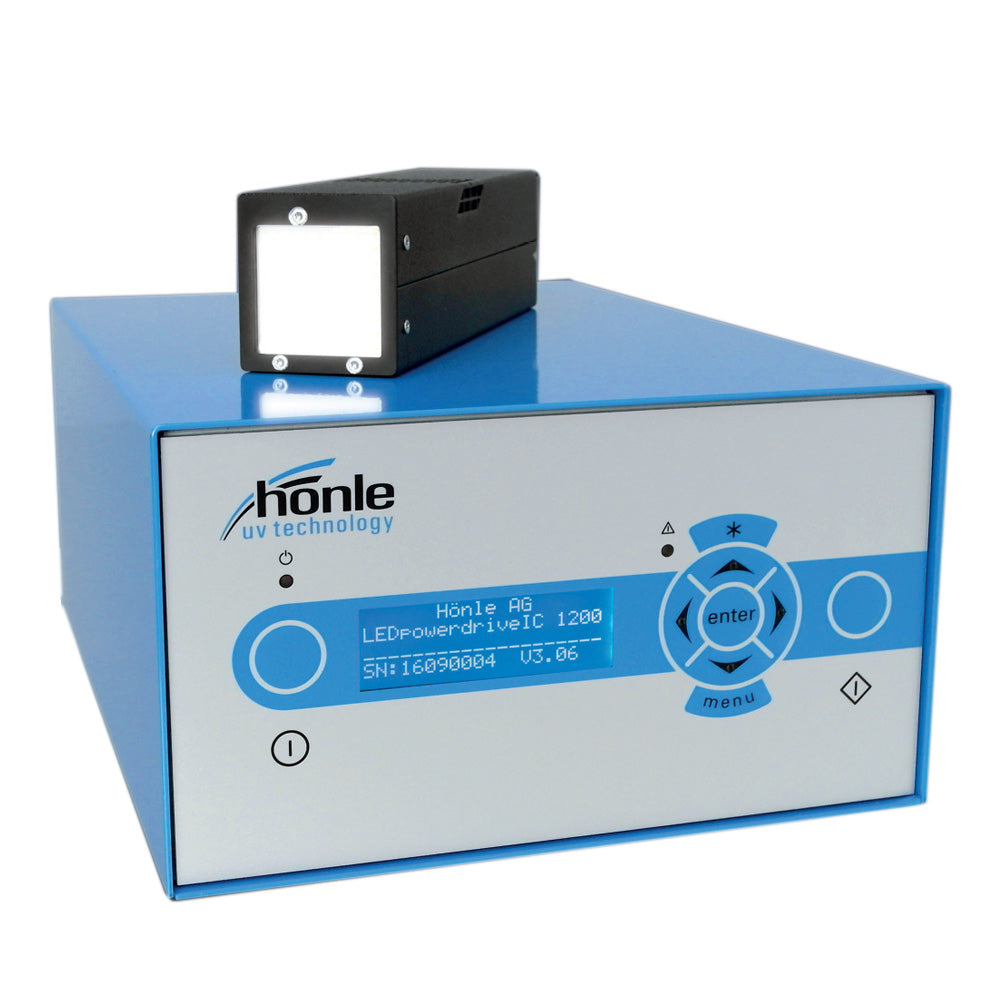

Honle LED Spot 40 IC Compact Flood UV Curing System
When to Use the Honle UV LED Spot 40 IC Curing System
The Honle LED Spot 40 IC is a high power, compact flood light system for curing UV adhesives, inks, coatings and more. The LED Spot 40 is perfect for applications for a standard LED light source is not sufficient for curing but a large flood light would be too large or expensive. The LED Spot 40 can be used in manual, semi-automatic and fully automated applications and is available in a wide range of LED wavelengths.
Details
The LED Spot 40 IC was developed for all applications requiring a compact flood unit with high intensities. The LED assembly, as well as an electronic power control, guarantee a highly intensive and homogenous distribution of light. The recognition of LED-malfunction and a comprehensive monitoring function provide very high process stability. So, especially in fully automated production lines, repeatable results can be realised even in the shortest cycle times. The typical service life of a LED is more than 20.000 hours***.
The LED Spot 40 IC can be switched on and off as often as necessary. It does not require a warm-up or cooling phase. The LED Spot 40 IC is available in the wavelengths 365/385/395/405/ 460 nm +/- 10 nm. This allows to adapt the spectra of the LED Spot to the existing application. The square light-emitting aperture has a size of about 40 mm x 40 mm at a base of only 55 mm x 50 mm. This compact design allows the integration of this small-sized LED flood unit in even the smallest spaces. The LED Spot 40 IC was especially designed for applications where the emitted light of a LED point source is just not enough but a standard flood unit would be oversized. For such small areas, the LED Spot 40 IC is the best choice because here it guarantees highest possible intensities. An integrated fan provides adequate cooling for continuous operation.
Thanks to an optimized air flow there are no negative impacts on the process. The power supply and control of the LED Spot 40 IC can be done either by the optionally available LED power drive IC or by an external power supply and PLC signals.
Specifications
|
Light-emitting aperture in mm: |
about 40 x 40 |
|
Dimensions in mm: L x W x D |
198 x 50 x 55 |
|
Wavelengths in nm typical intensity in mW/cm² LED Spot 40 IC |
365 385 395 405 460 3.000* 7.000* 7.000* 7.000* 10.000** |
Cooling |
Air cooled |
Special Features
- Integrated controller (IC)
- Driving and monitoring of the LED segment
- Monitoring of the LED segments regarding short-circuit, interruption and excess temperature
- Recording of the operating hours
- Analogue dimming of the segments via a 0-10 V-signal
- Digital PLC interface (LED enable, LED on, LED error)
- Bus control of all modules via RS485 or optional LED power drive IC
Available Interfaces
- Analog preselected target value 0,2V - 10V ≙ 2% - 100%
- PLC inputs: LED on, LED enable
- PLC outputs: LED is on, LED is off, LED error, LED warning
- Dry relais contact function (see PLC outputs)
- Foot switch
- LED enable signal
