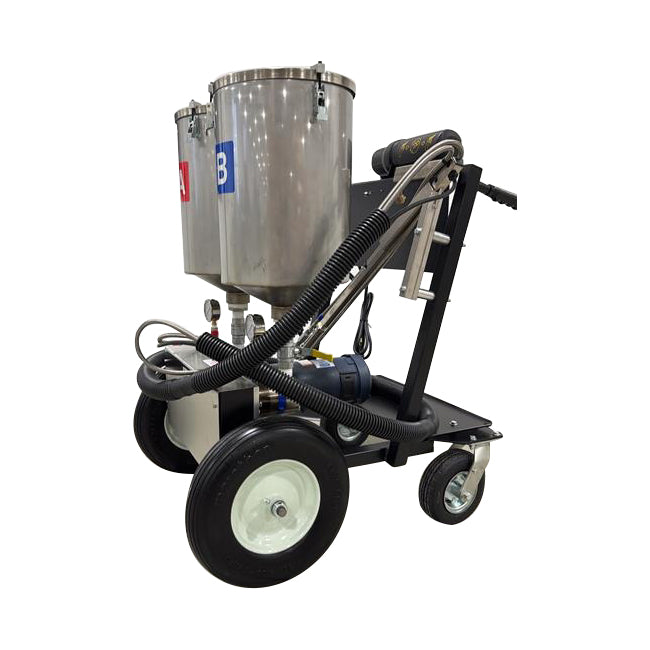

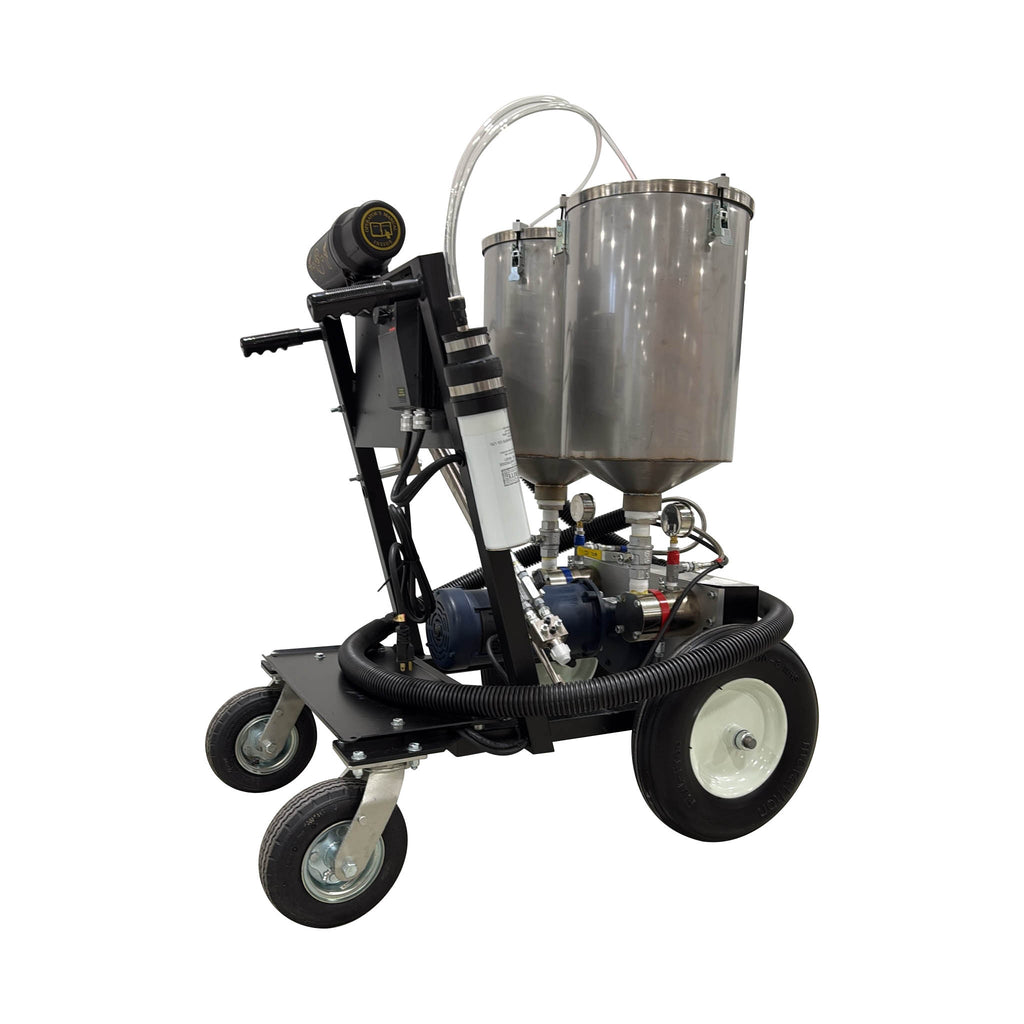

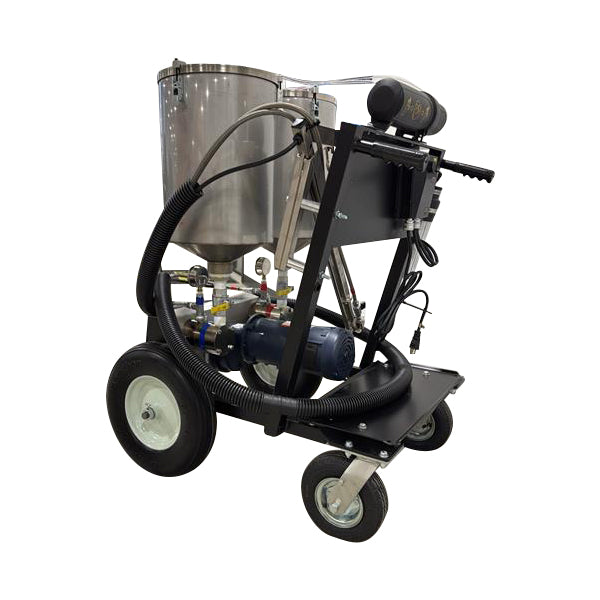

Entry level spray pump for two part adhesives and coatings

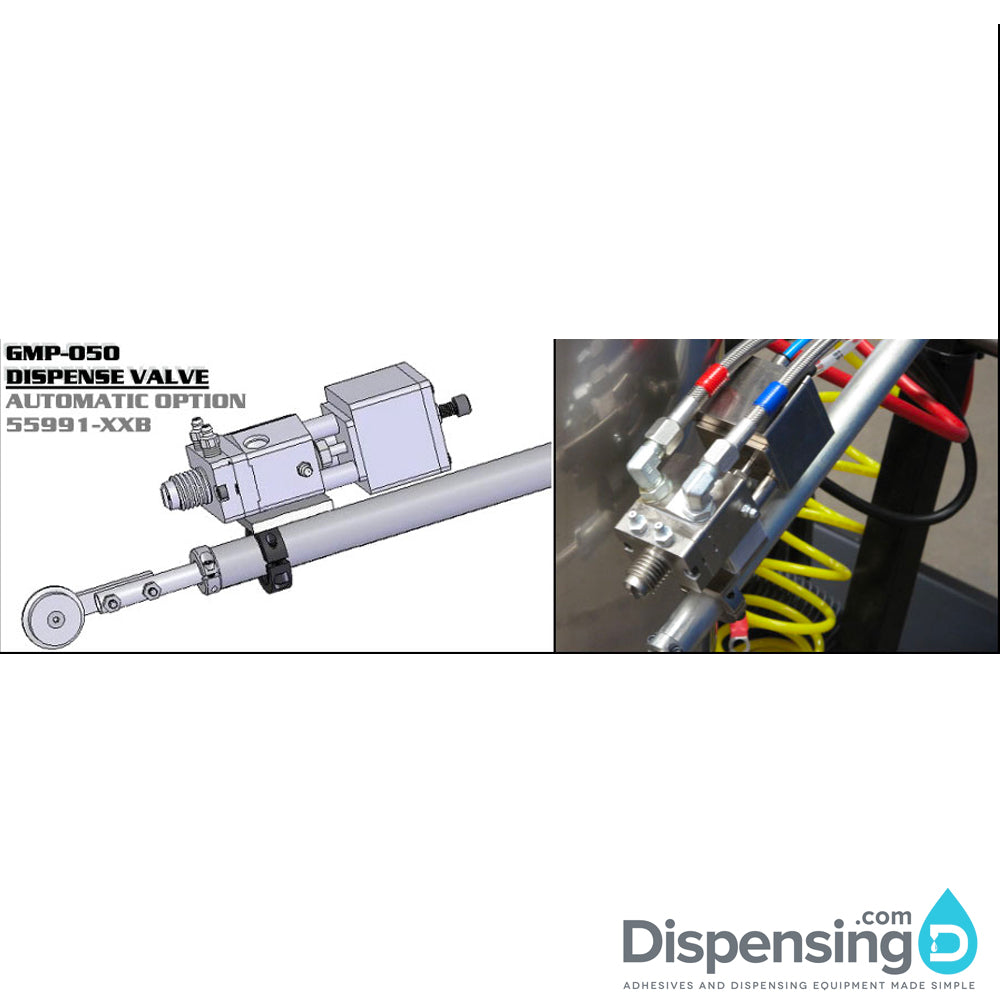

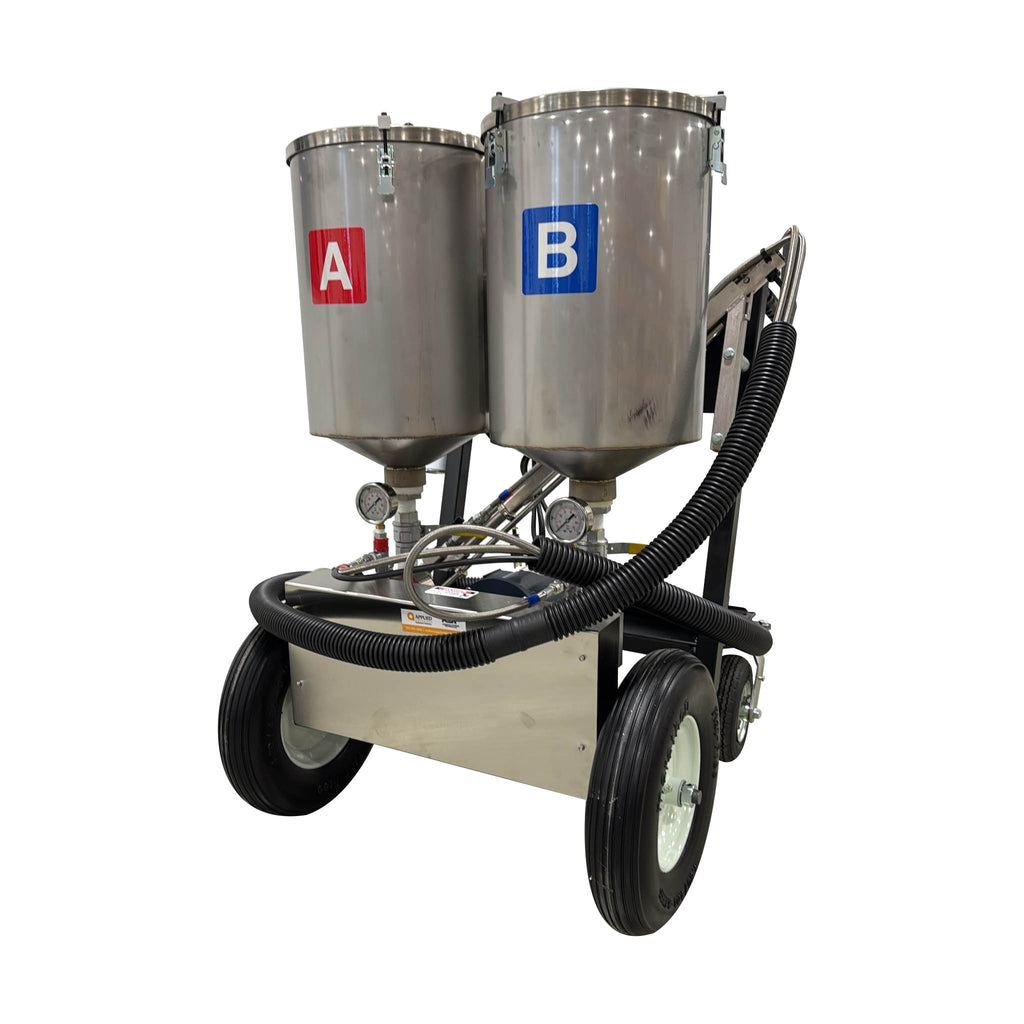

AST two part spray pump dispensing manifolds

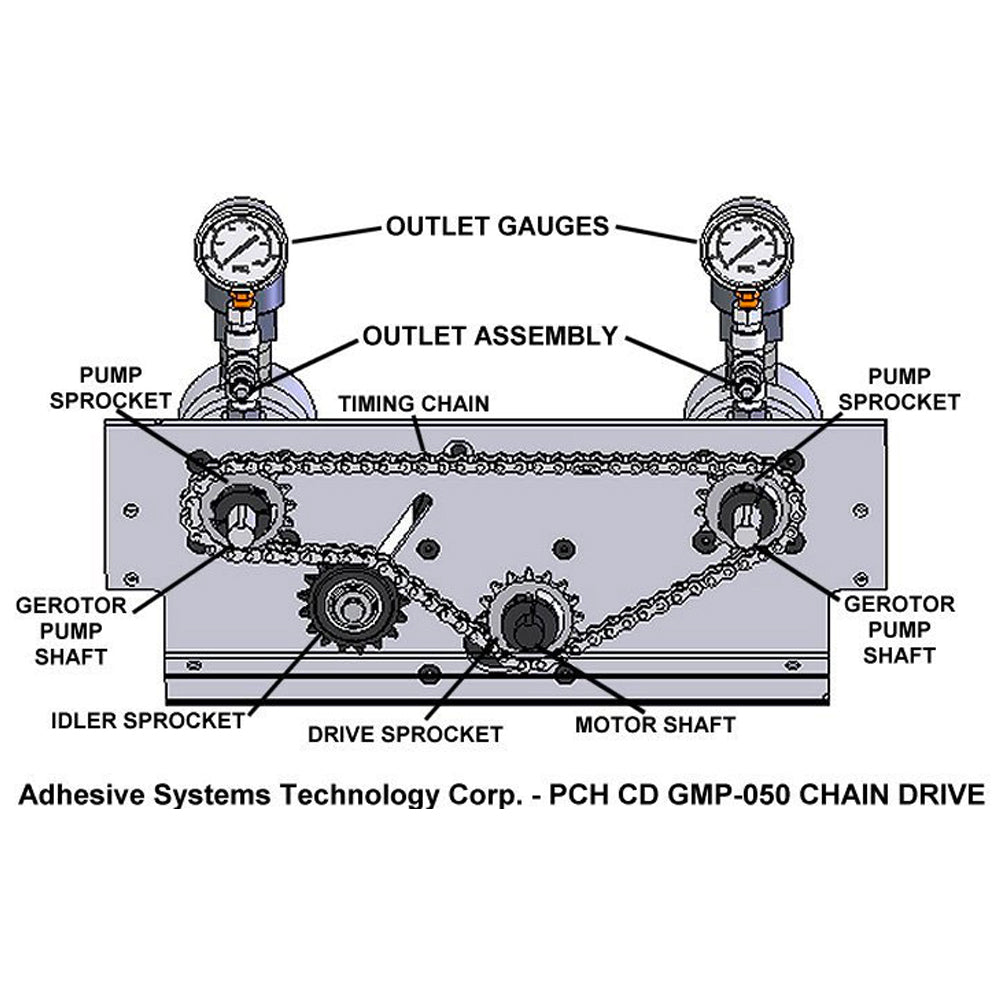

AST 050 Spray two part spray system drive system

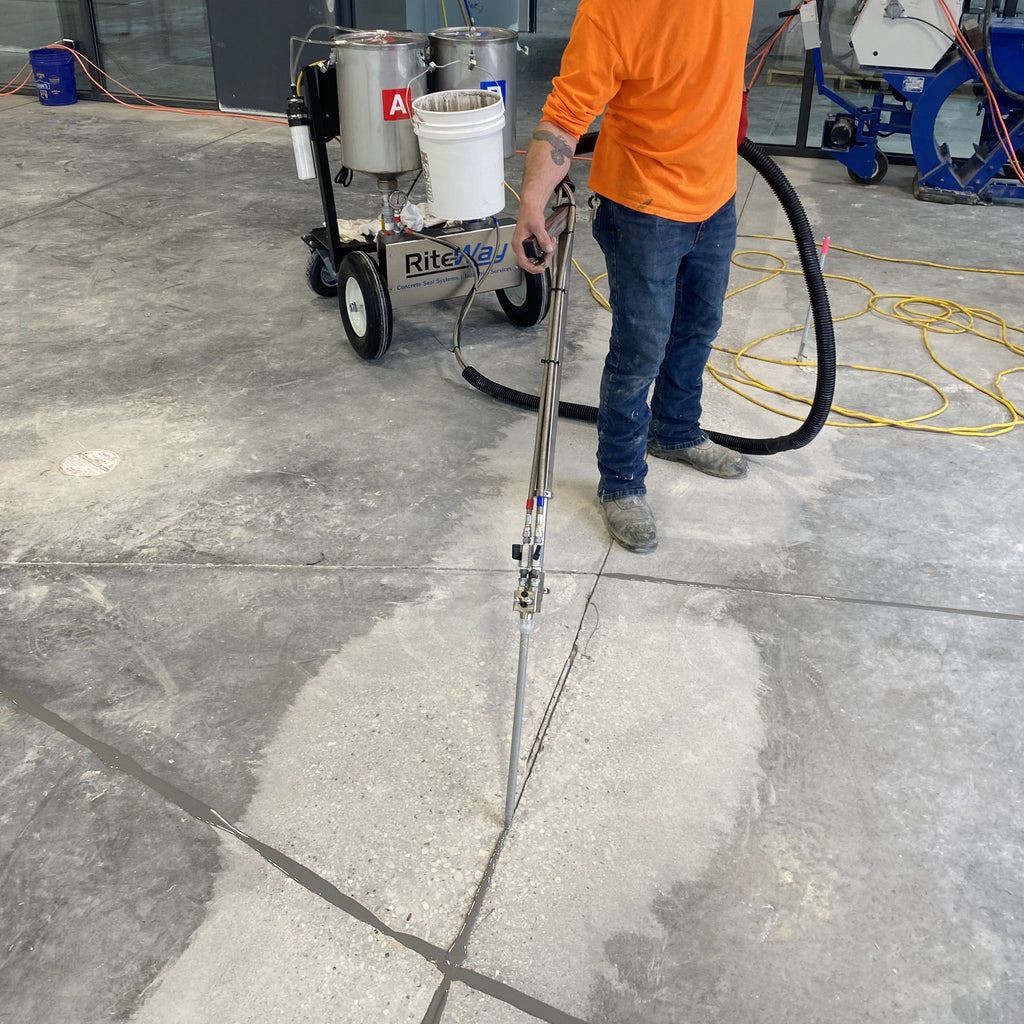

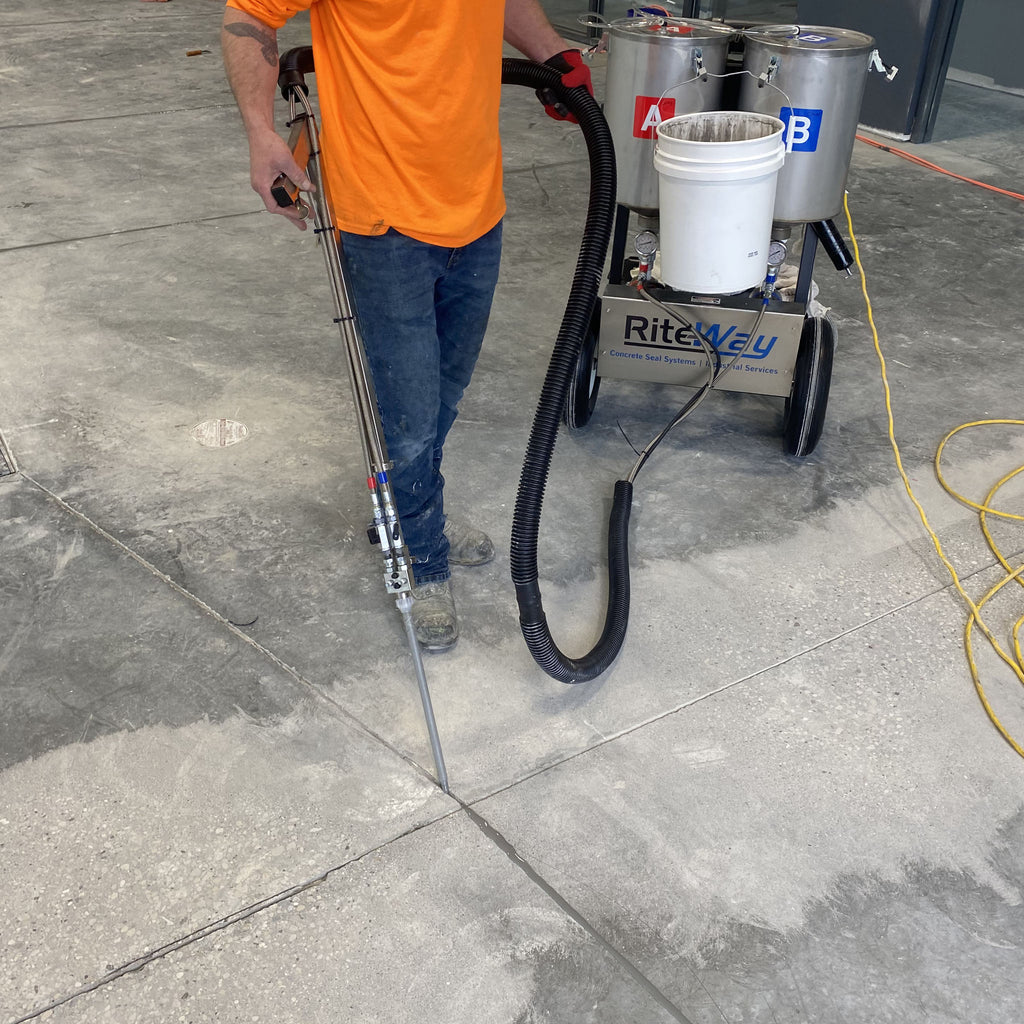

Worker using the AST GMP-50 to fill in cracks at the job site.

Worker filling cracks using the AST GMP-050 unit

Roll over image to zoom in Click on image to zoom

Pump for Dispensing Two Part Epoxy, Polyurea and Urethane (AST GMP 050)

SKU: AST GMP-050-M

Made in the USA

Polyureas
Unfilled Epoxies
Unfilled Urethanes

Concrete Repair
Joint Filling
Anchoring

Elevate Your Projects with the AST 050 Dispensing Pump System: The Ultimate in Portability, Reliability, and Versatility

A Portable Powerhouse for Diverse Applications

From joint filling to concrete restoration, the AST 050 Dispensing Pump System is your portable solution for a multitude of applications. Designed to dispense a wide range of materials like Polyureas, Unfilled Urethanes, and Unfilled Epoxies, this rugged system is as versatile as it is reliable.

User-Friendly and Built to Last

Ease of operation meets industrial-grade durability in the AST 050. With its stainless steel construction and backed by AST's trusted warranty, this system is built to last while being incredibly easy to operate and maintain.

Unbeatable Features & Benefits

Portable Design: Take it anywhere, set it up in minutes.
AST GMP Metering Pumps: For precise, reliable dispensing every time.
Continuous Flow Up to 0.6 GPM: Keep your projects moving without interruption.
High Fluid Pressures Up to 750 PSI: Built for even the most demanding applications.
Wide Viscosity Range Up to 7,500 CPS: Versatility to handle various material types.
Changeable Ratios: Choose from fixed ratios of 1:1 to 4:1 for maximum flexibility.
Variable Flow Rate: Customize the flow to meet your specific needs.
8.5 Gallon Stainless Steel Tanks: For long-lasting, corrosion-free storage.

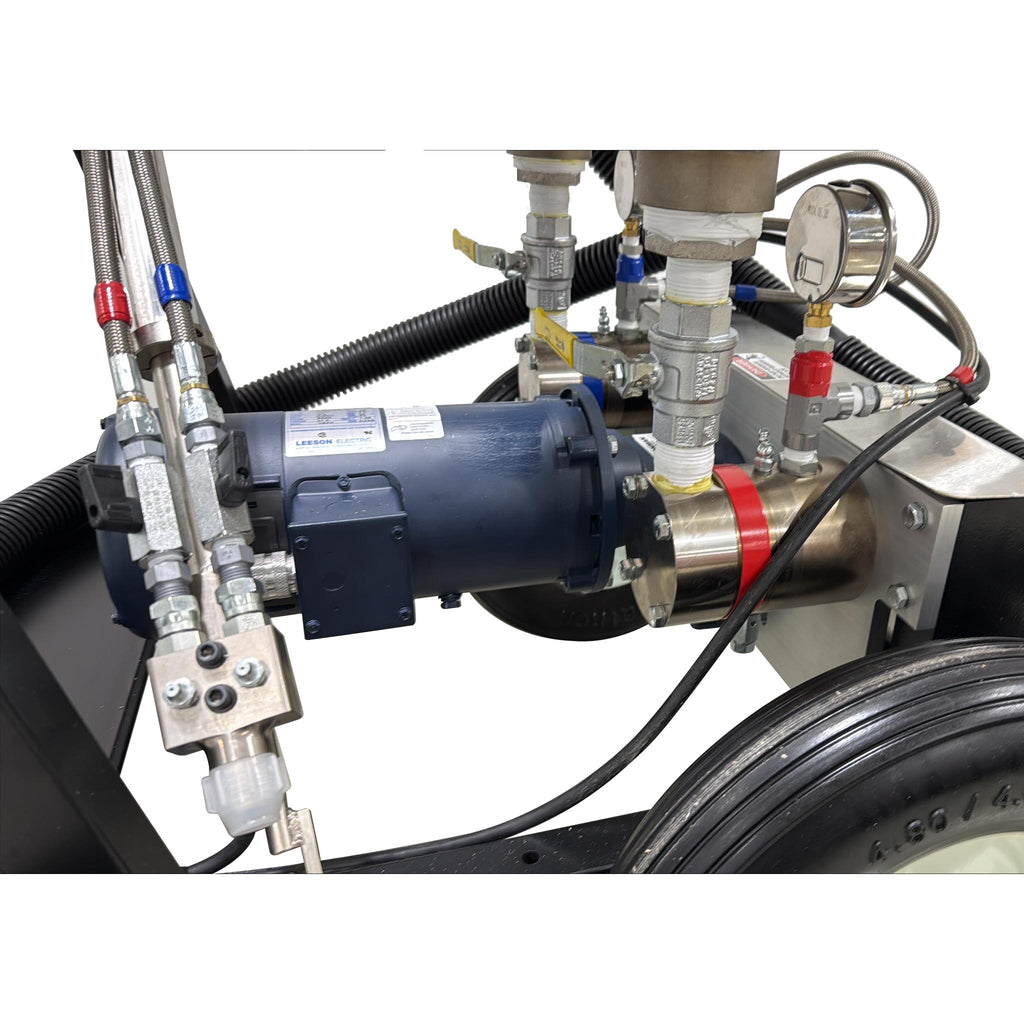

Powerful ½ HP DC Drive Motor: Robust power for any job.

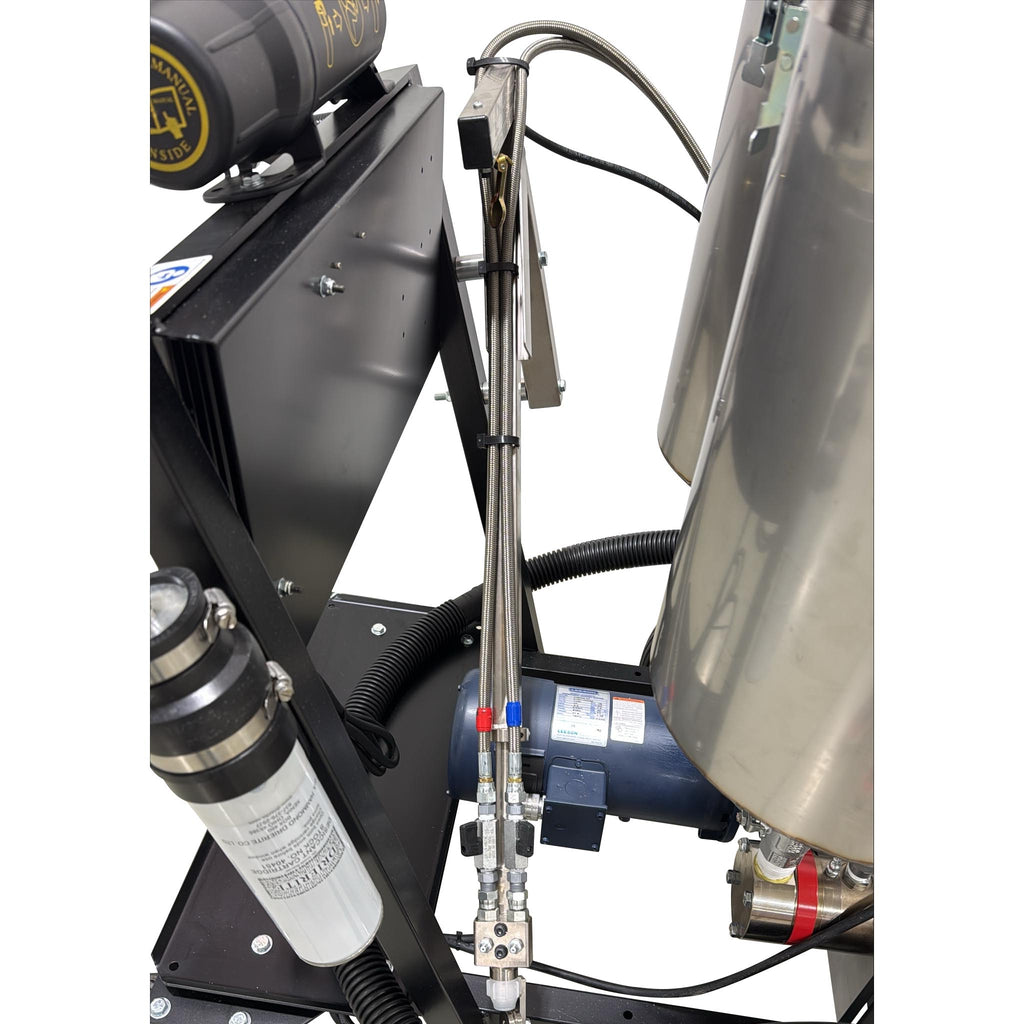

Manual Dispense Manifold: You're in control.
Electric Powered: Single phase power (110V) with 9 amp draw
Pumps Non-Abrasive Materials: Ensuring a longer lifespan for your system.

Why the AST 050 is the Right Choice for You

When it comes to a cost-effective, high-performing, and easy-to-use dispensing pump system, the AST 050 is in a class of its own. Its robust set of features makes it the go-to choice for professionals who demand the best.

Ready to upgrade your operations? Contact us today to get a quote or learn more about how the AST 050 can revolutionize your projects.

Available Options

Heated tanks
Power inverter
Generator mount

Specifications

MODEL	PCH GMP-050	FRAME	1½” powder coated tubular steel
MACHINE TYPE	Fixed ratio/metering/dispensing; GMP gear	CONTINUOUS OUTPUT	Up to 0.6 gallons per minute
RATIO RANGE	1:1 to 4:1	VISCOSITY RANGE	100 CPS to 7,500 CPS
GAUGES	(2) glycerin filled, 600 psi	AIR DRYER	Desiccant cartridge
STANDARD CONTROLS	On/Off; variable speed	SERVICES REQUIRED	110V. / 15 AH, 9 AMP;
CONTAINERS	8.5 gallons each side, stainless steel, 16 gauge	APPLICATORS	AST hand held; dual port manifold
MOTOR	½ HP drive, 90 volt	MIXER	Disposable, plastic, motionless
METERING PUMPS	(2) heavy duty AST GMP gearotor™	HOSES	Teflon core braided stainless steel, ⅜” x 15’
DIMENSIONS	36” L x 30” W x 40” H 200 lbs. empty, shipping weight 250 lbs.	OPTIONS	Heated tanks Power inverter

Common Compatible Materials

Polyureas
Unfilled Urethanes
Unfilled Epoxies
Ardex Ardiseal Rapid Plus
Elite Crete Systems JFS-680P Grid-Lock
Euclid Euco 700
Euclid Qwik Joint
HTS PE-85
Metzger McGuire MM-80
Metzger McGuire RS 88
Sherwin Williams JF 311
Sika Loadflex
SpecChem Rapidflex CJ
Versaflex SL75
Contact us to see if your material is compatible

AST GMP 050 Brochure

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
