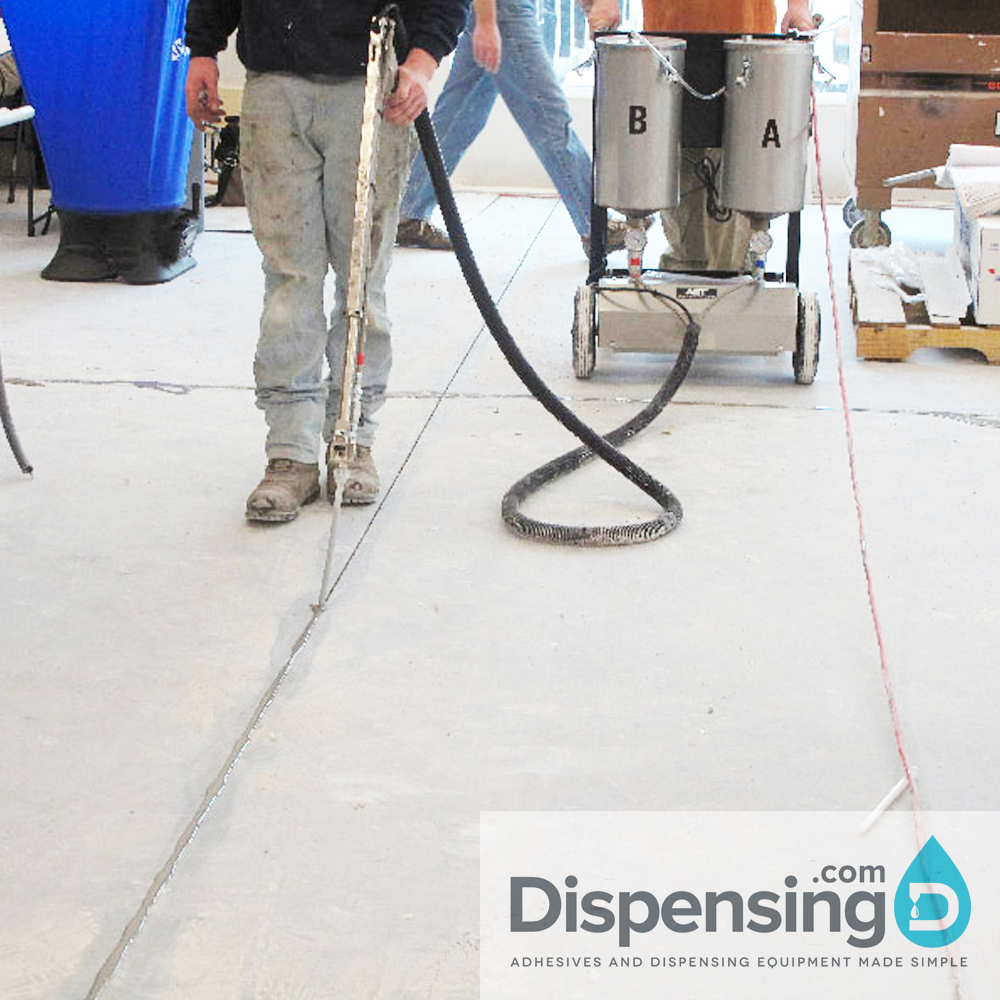

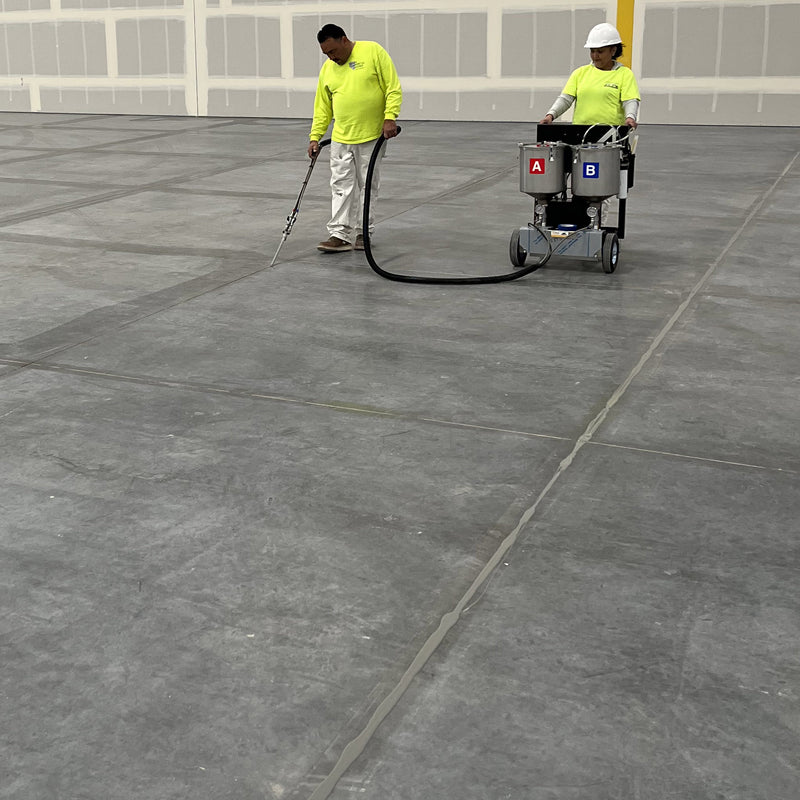

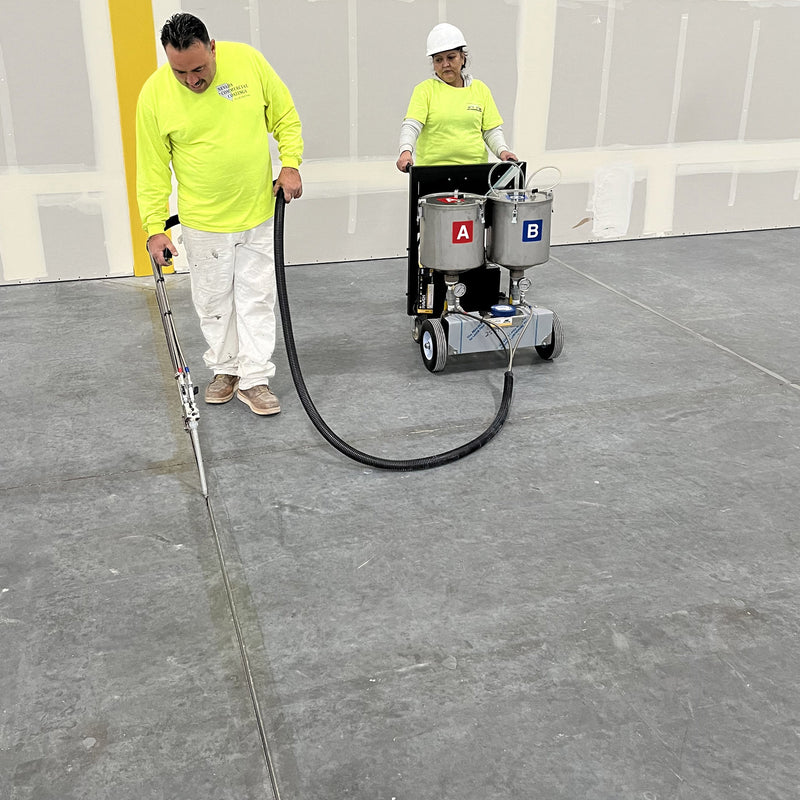

Two workers filling cracks with the portable AST GMP-025 unit
Two workers filling in cracks using the AST GMP-025 unit
Close up of the AST GMP-025 dispensing wand filling in a crack

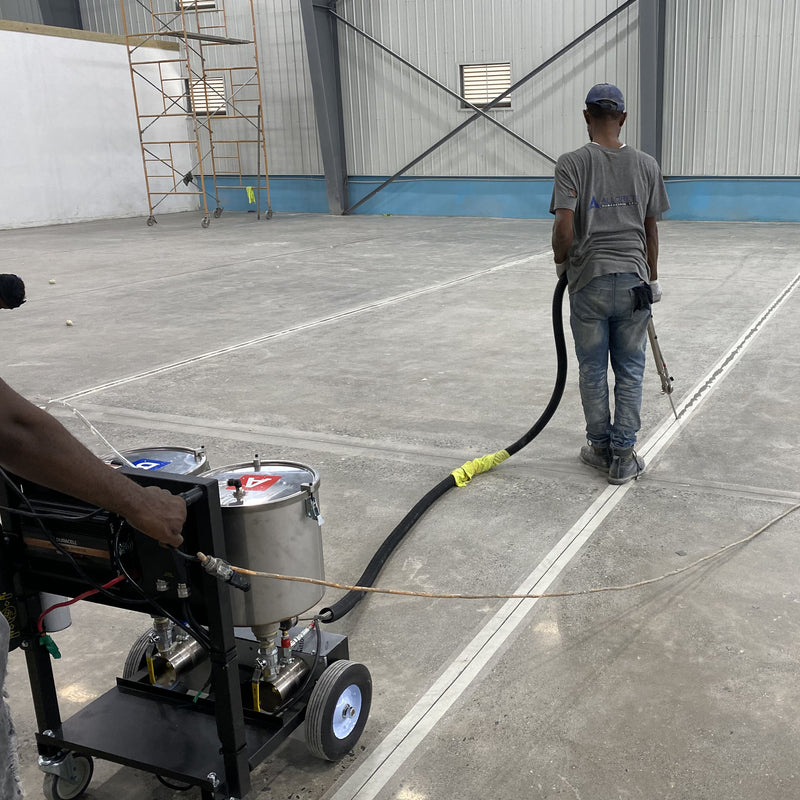

Worker using the AST GMP-025 to fill in cracks
Two workers using the AST GMP-025 to fill in cracks
Joint filling with epoxy or polyurea dispensing machine
Portable crack filling glue machine for construction
Portable epoxy polyurea dispensing machine for crack filling
Roll over image to zoom in Click on image to zoom
Portable Two Part Dispensing System for Crack Filling
Portable Low Cost Polyurea Dispensing System for Joint Filling (AST GMP 025-C)
Portable Two Part Joint Filling Dispensing System
Back view of portable two part dispensing system for joint filling
Polyurea joint sealing dispensing system in action
Two workers filling cracks with the portable AST GMP-025 unit
Two workers filling in cracks using the AST GMP-025 unit
Close up of the AST GMP-025 dispensing wand filling in a crack
Worker using the AST GMP-025 to fill in cracks
Two workers using the AST GMP-025 to fill in cracks
Joint filling with epoxy or polyurea dispensing machine
Portable crack filling glue machine for construction
Portable epoxy polyurea dispensing machine for crack filling

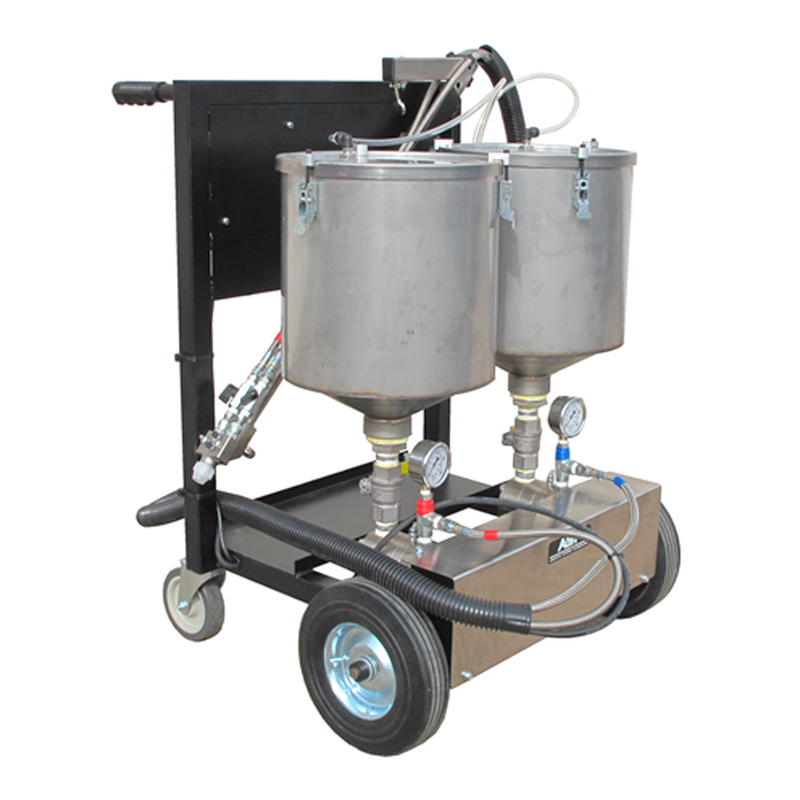

Portable Low Cost Polyurea Dispensing System for Joint Filling (AST GMP 025-C)

SKU: AST GMP-025-C

Made in the USA

Used to Dispense

  • Polyureas
  • Unfilled Urethanes
  • Unfilled Epoxies

Common Applications

  • Joint Filling and Sealing

The AST GMP 025-C Lil' Pro: Rugged, Cost-Effective, and Built for the Job Site

In construction, you need equipment that's both rugged and cost-effective. AST delivers on both fronts with the GMP 025 Lil' Pro. This industrial-grade, portable two-part meter mix dispensing system is a smart investment for contractors and construction professionals. It's built to withstand the rigors of the job site while offering a budget-friendly solution that doesn't compromise on quality.

Performance and Affordability

One of the standout features of this system is its unique metering pump, which offers reliable and consistent performance. With fixed ratios from 1:1 to 4:1, you can customize your mix to suit specific project requirements. The system also boasts a continuous flow rate of up to 0.3 gpm and can handle fluid pressures up to 750 psi. Despite its robust capabilities, it's designed to be budget-friendly, offering high performance without the high cost.

Built to Last

Durability is a key factor when choosing construction equipment, and the GMP 025 Lil' Pro doesn't disappoint. Its 6-gallon stainless steel or hard plastic tanks and 1/4 HP DC drive motor are built for longevity. The manual dispense manifold and electric power source make it user-friendly, and its no frills design means there are less moving parts and electronics to fail.

Applications Designed for Real-World Construction Challenges

  • Joint Filling: Create seamless, durable joints that stand up to the elements.
  • Concrete Restoration: Transform worn-out surfaces into revitalized, functional areas.
  • Small Joint Sealing: Achieve long-lasting, airtight seals for optimum performance.
  • Small Spall Repair: Execute rapid, effective repairs that endure through wear and tear.
  • Anchoring: Fortify your structures with unparalleled strength and stability.
  • Bridge Repair: Attain durable, airtight seals to ensure peak performance.

Specifications

  • Uses AST GMP metering pump
  • Continuous flow up to 0.3 gpm
  • Fluid pressures up to 750 psi
  • Viscosities up to 5,000 cps
  • Fixed Ratios of 1:1 to 4:1
  • Variable flow rate
  • 6 gallon stainless steel tanks option feed
  • 1/4 HP DC drive motor
  • Manual dispense manifold
  • Electric powered
  • Pumps non-abrasive materials

Common Compatible Materials

  • Polyureas
  • Unfilled Urethanes
  • Unfilled Epoxies
  • Ardex Ardiseal Rapid Plus
  • Elite Crete Systems JFS-680P Grid-Lock
  • Euclid Qwik Joint
  • HTS PE-85
  • Metzger McGuire RS 88
  • Sherwin Williams JF 311
  • Sika Loadflex
  • SpecChem Rapidflex CJ
  • Versaflex SL75
  • Contact us to see if your material is compatible

Downloads

About AST Equipment

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
