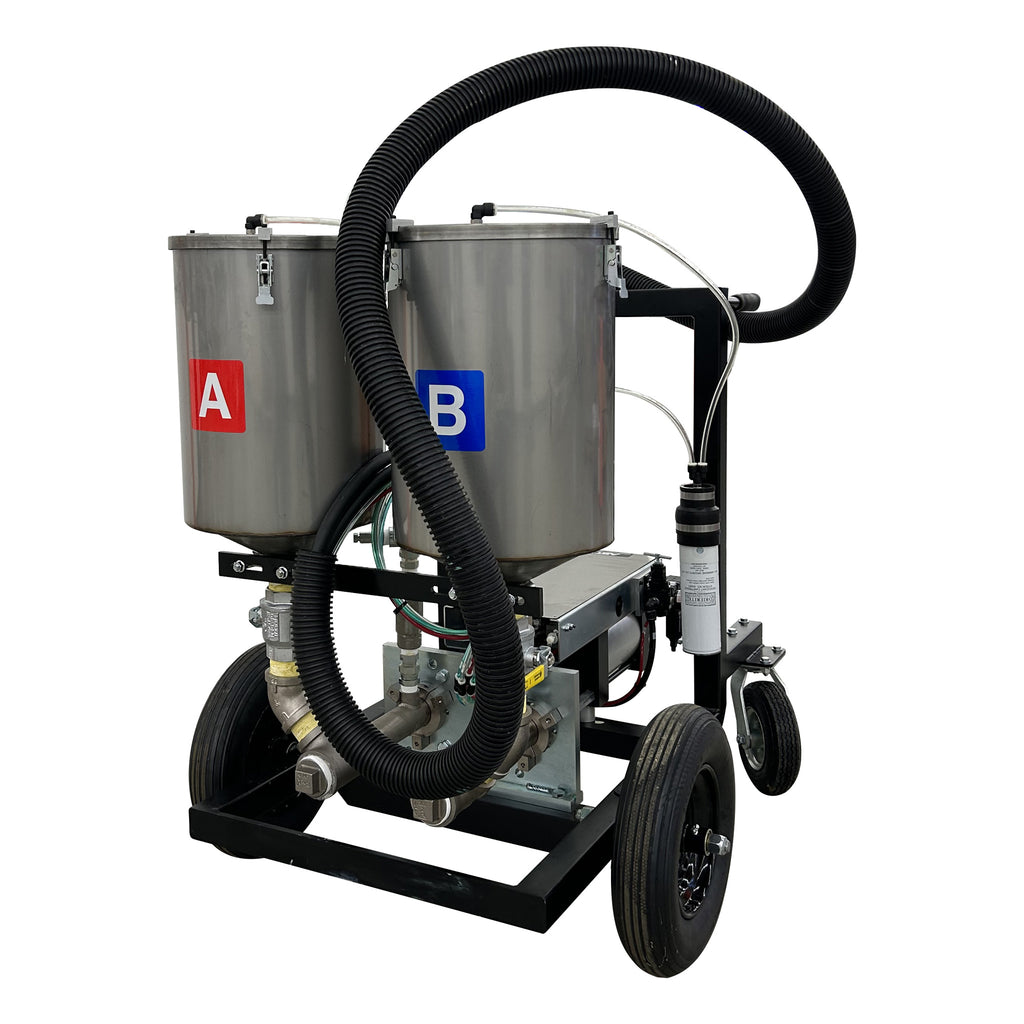

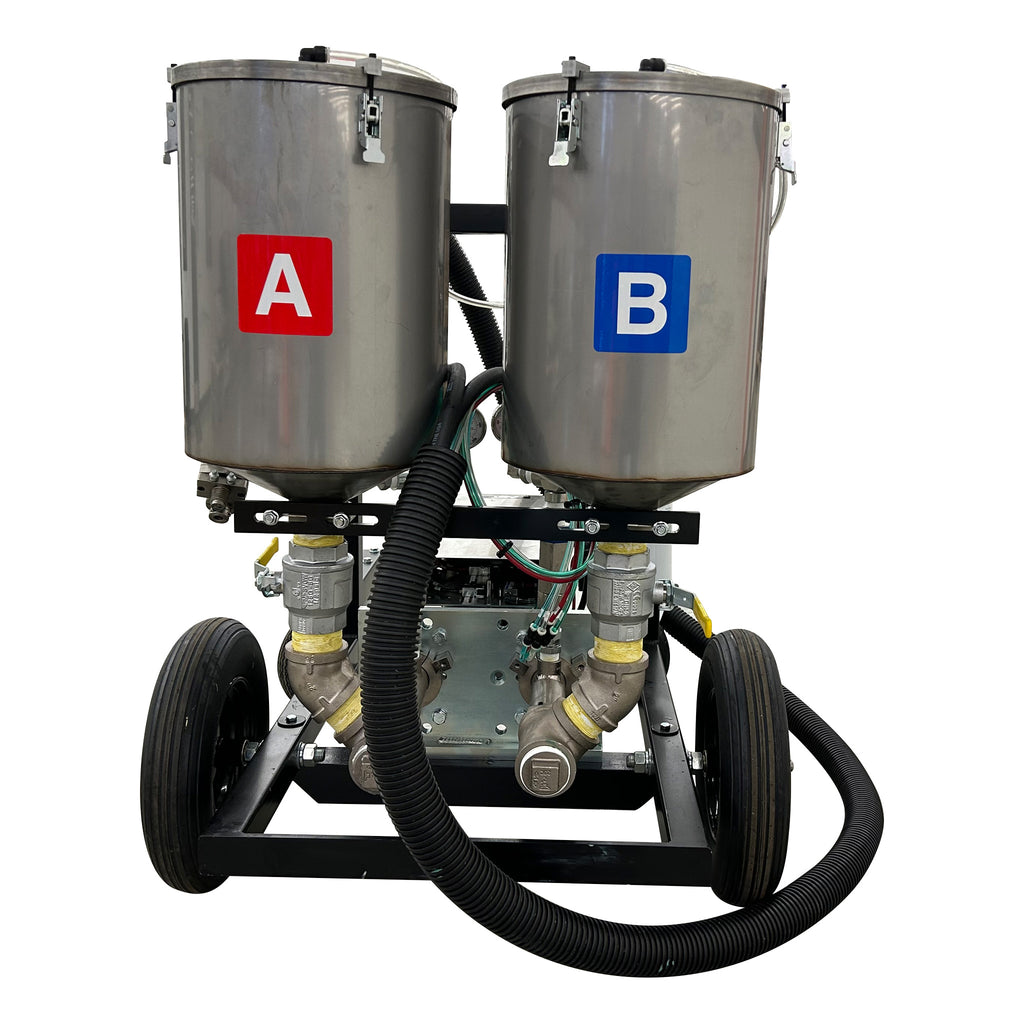

Front View of AST CMP 632-C Epoxy and Urethane Dispensing System

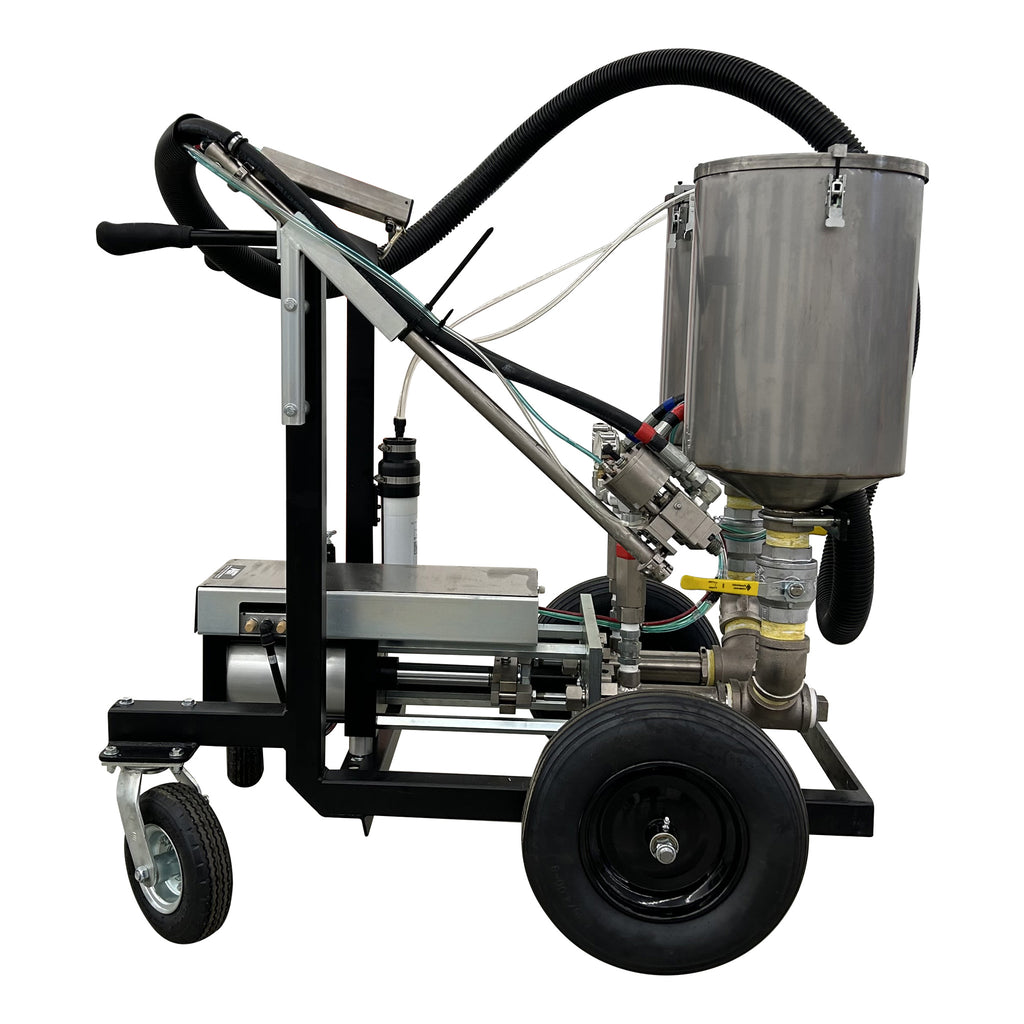

Side View of AST CMP 632-C Epoxy and Urethane Dispensing System

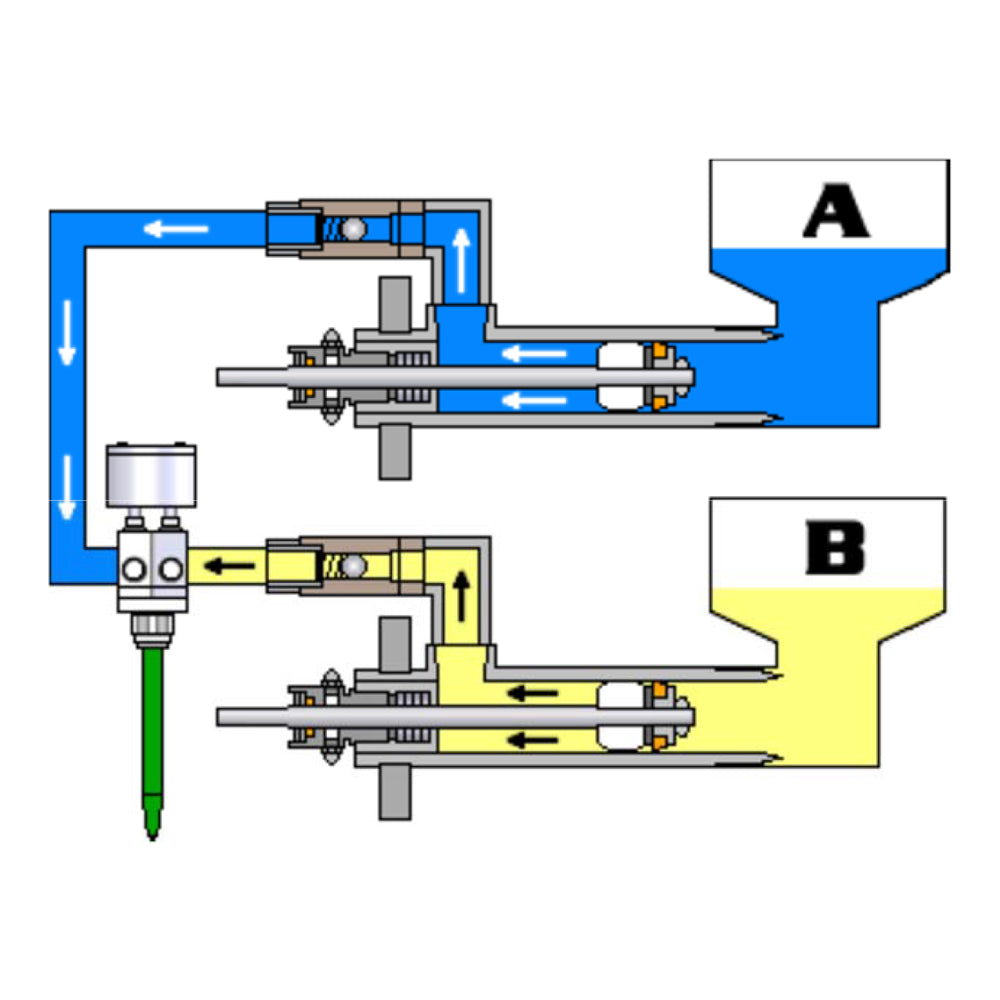

Diagram of AST CMP 632-C Epoxy and Urethane Dispensing System

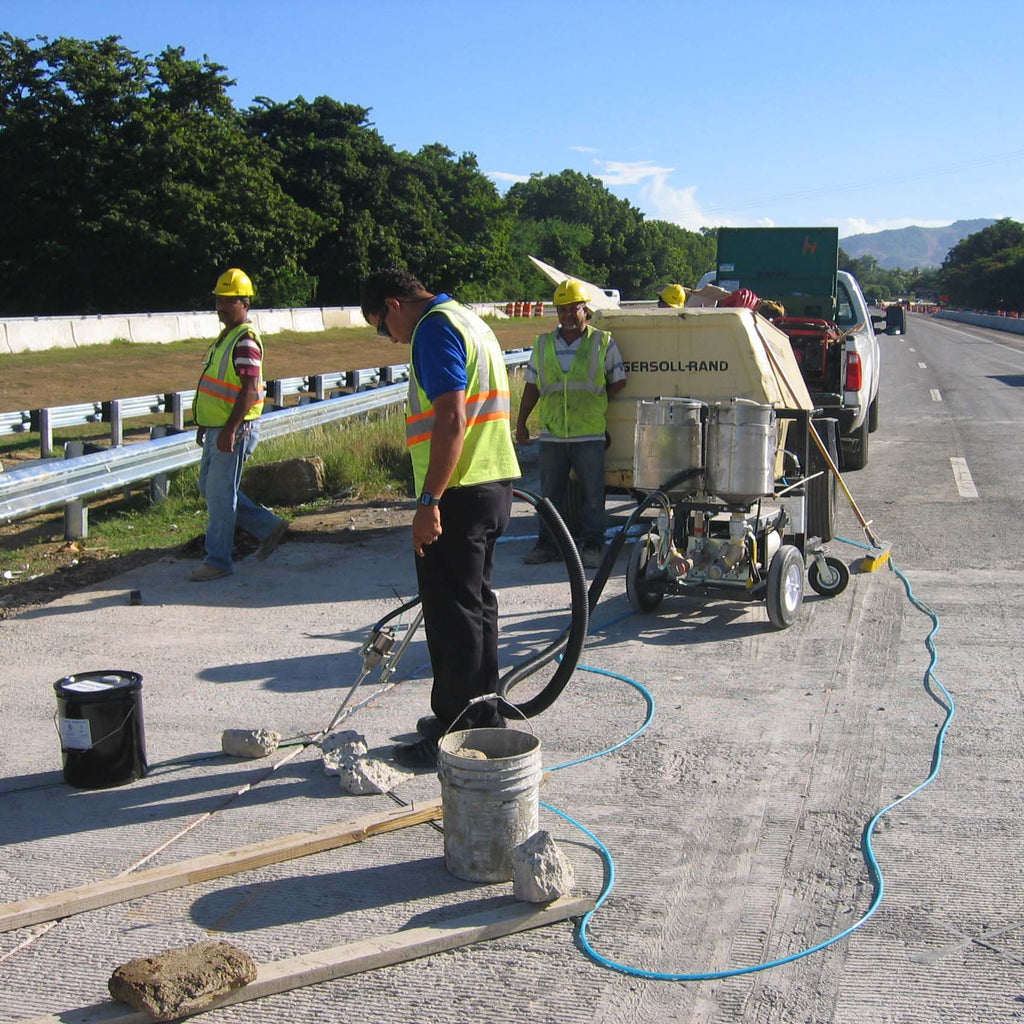

Construction workers filling cracks using the AST CMP 632 Dispensing System

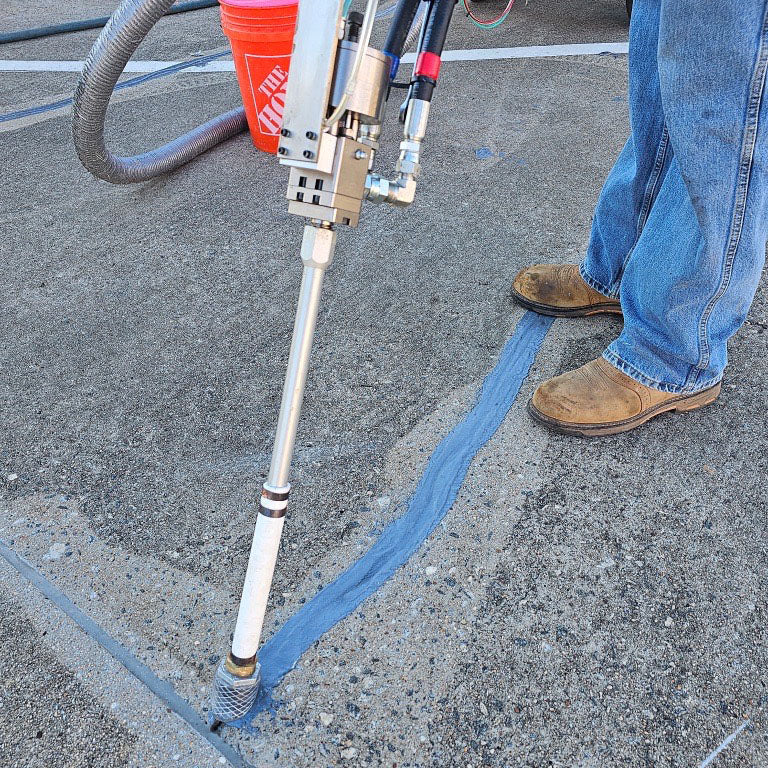

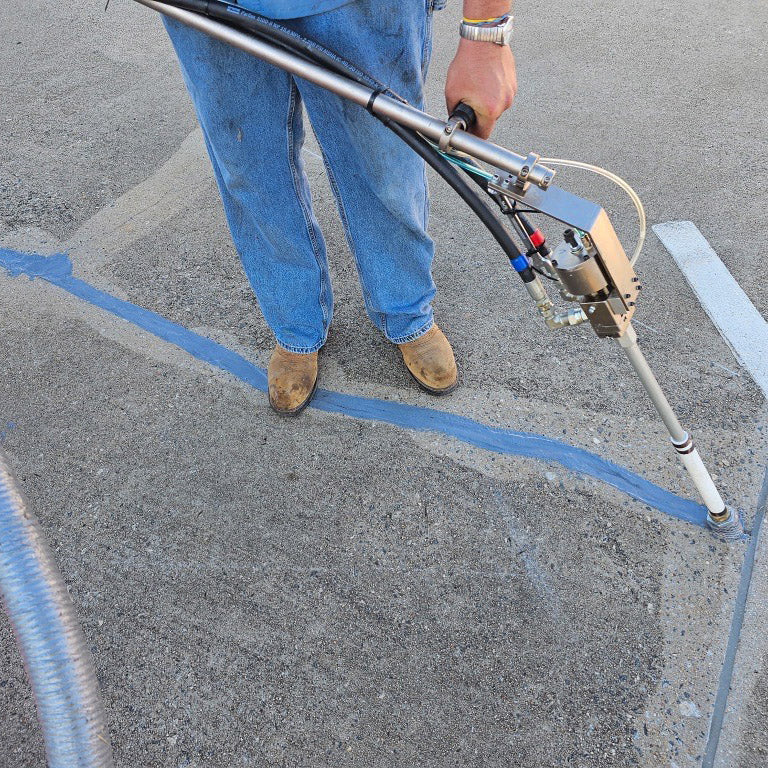

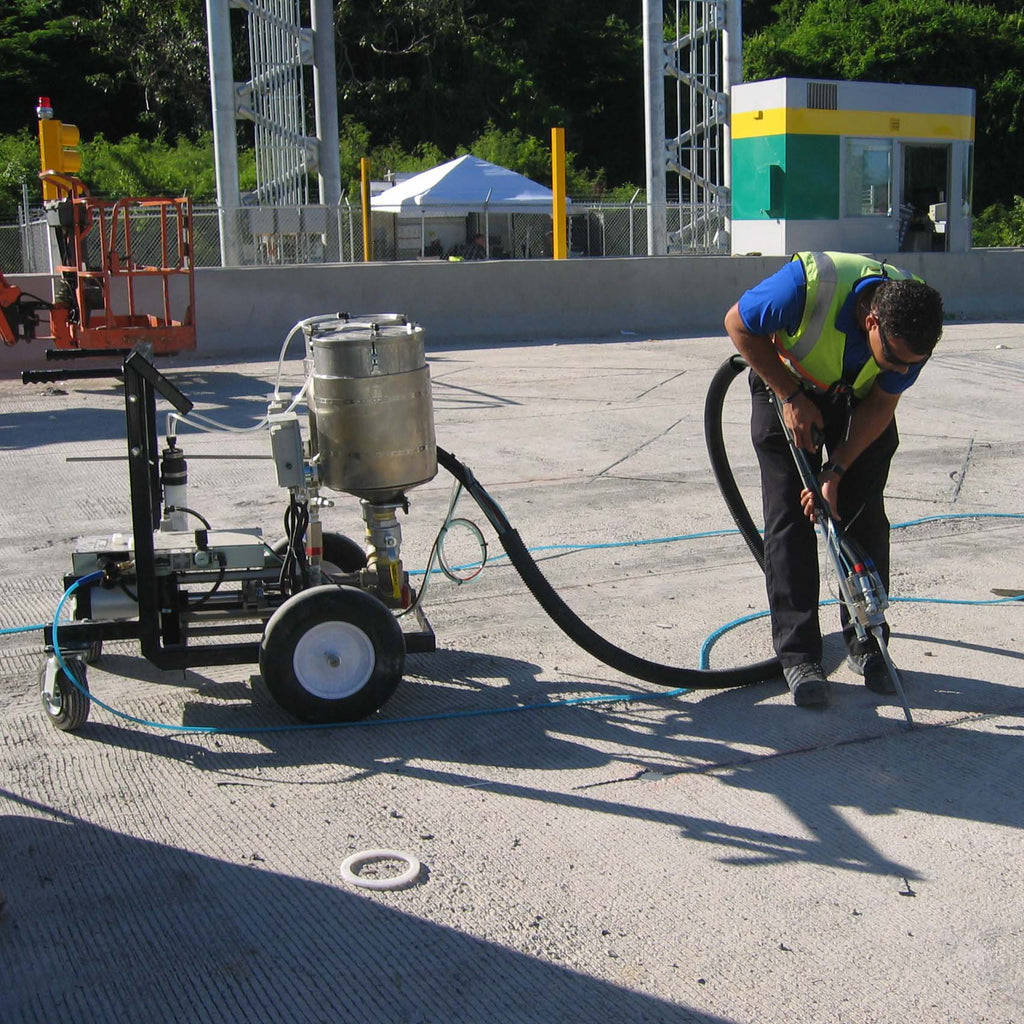

Worker using the AST CMP-632 wand to fill in concrete crack

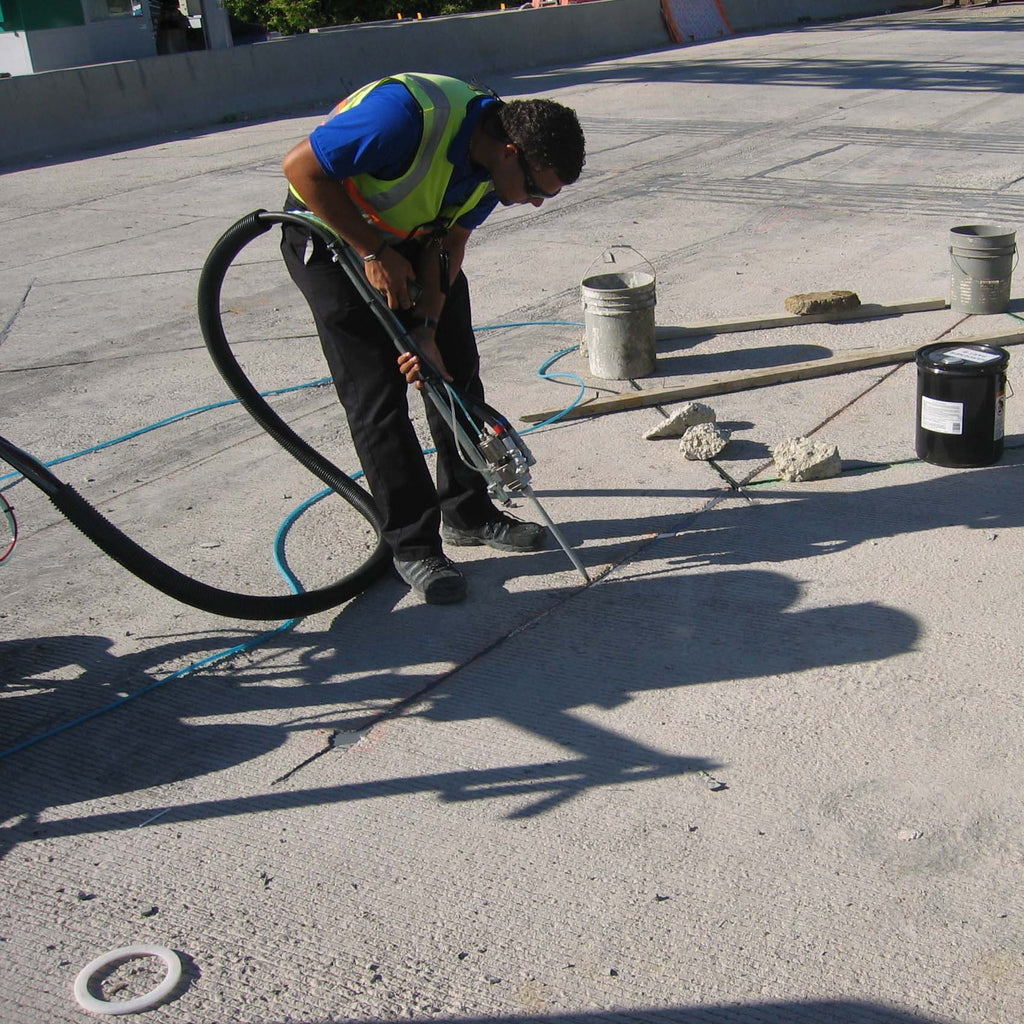

Worker filling cement crack with AST CMP-632 Dispensing System

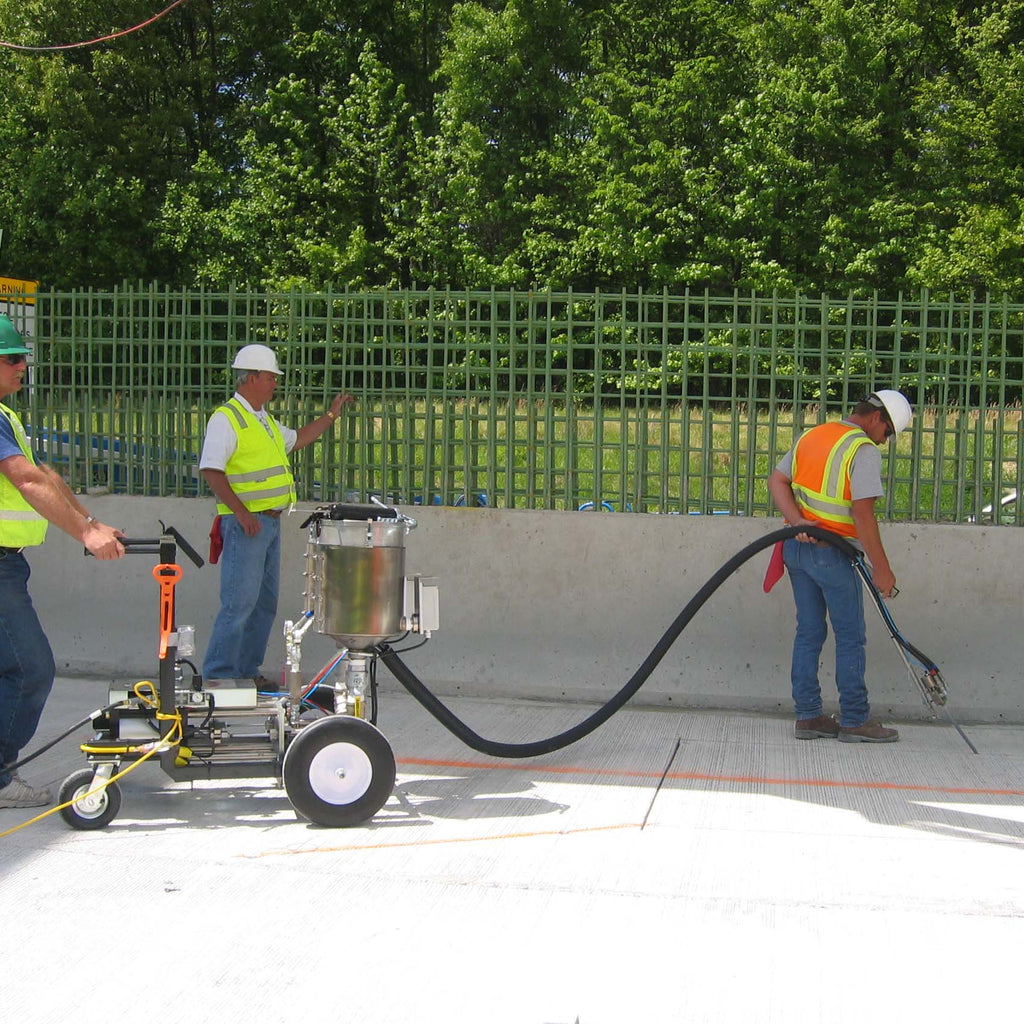

Workers using the AST CMP 632 dispensing system on new road

Portable Dispensing System for Epoxy, Silicone, and Urethane (AST CMP 632-C)

SKU: AST CMP 632-C

Made in the USA

Used to Dispense

  • Epoxies
  • Urethanes
  • Polyurethanes
  • Unfilled Epoxies
  • Unfilled Urethanes
  • Silicones

Common Applications

  • Sealing
  • Caulking
  • Joint Filling
  • Traffic Loop Sealant
  • Highway Marker Placement
  • Runway Light Installation
  • Glass Wall Grouting
  • Airport Runway Sealing

AST CMP 632-C Dispensing System Overview

The AST CMP 632-C Dispensing System is the ideal solution for a wide range of applications, including sealing, caulking, joint filling, traffic loop sealant, highway marker placement, and runway light installation. This versatile system is designed to handle both filled and unfilled epoxies and urethanes with ease.

The AST CMP 632-C Dispensing System combines portability, reliability, and rugged design to meet the demands of various industrial applications. Its pneumatic operation and variable flow rate make it a versatile tool for any project requiring precise and efficient dispensing of epoxies and urethanes (polyurethanes). Easy to operate and maintain, this system is a valuable addition to any professional's toolkit.

Features and Benefits

  • Portable: Easy to transport to various job sites
  • Reliable: Consistently delivers high performance
  • Rugged Design: Built to last
  • Pneumatic Operation: For smooth dispensing
  • Variable Flow Rate: Adjustable to meet specific project needs
  • Easy to Operate and Maintain: Simplifies operation and maintenance
  • Metered Shots: For adjustable and accurate dispensing
  • Moisture Removal: Tanks are connected to a desiccant to dry the air before it enters the system

Specifications

  • Model: CMP-632
  • Tanks: Two (2) 8.5 Gallon Tanks
  • Volume Output: Up to 1 GPM
  • Cycle: Up to 20 Cycles/Min
  • Viscosity: Up to 150,000 CPS
  • Services Required: 6 cfm, 90 PSI
  • Hoses: 15 ft. - Made of Moisture Resistant Material
  • Dimensions: 28" L x 42" W x 49" H
  • Weight: 250 lbs

Common Compatible Materials

  • Filled or Unfilled Epoxy
  • Filled or Unfilled Urethane
  • Polyurethane
  • Plural Component Silicones
  • Dayton Superior P606
  • Dow 902
  • ITW Elastothane 200
  • Sika 728
  • Sika Sikaforce 735GG
  • Contact us to see if your material is compatible

Downloads

About AST Equipment

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
