Rotary Micro Valve for Precision Fluid and Adhesive Dispensing

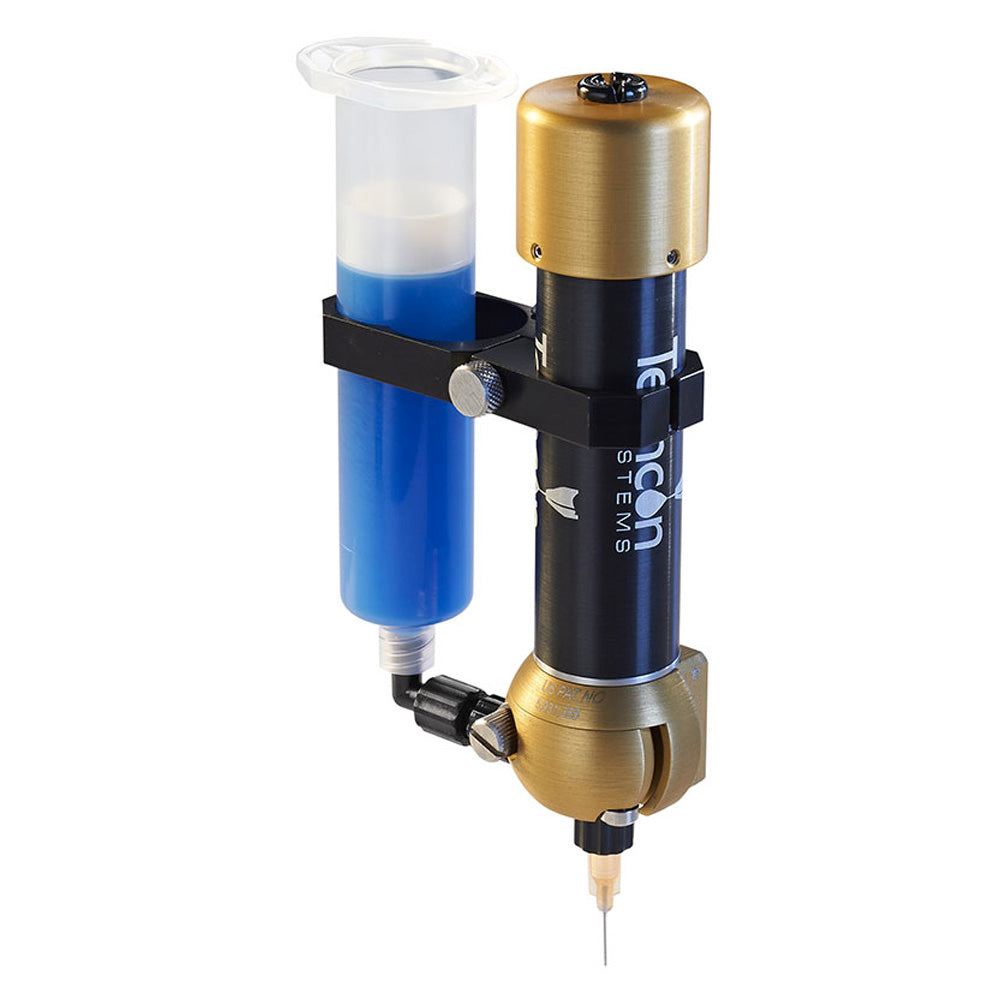

About the Techcon TS5000DMP Rotary Micro Valve for Precision Fluid and Adhesive Dispensing
The Techcon TS5000DMP Rotary Valve offers a unique disposable material path (DMP) meaning there is no cleaning required. The feed path can be removed and replaced with a new feed path with zero cleaning or down time. This feature dramatically increases the life of the valve while reducing down time.
View Complete Configurable Syringe Dispensing Systems
The Techcon TS5000DMP Rotary Valve Is Used to Dispense
| Epoxies | Flux (Pastes) | Greases | Solder Pastes |
| Two Part Adhesives | UV Cure Gels |
Details

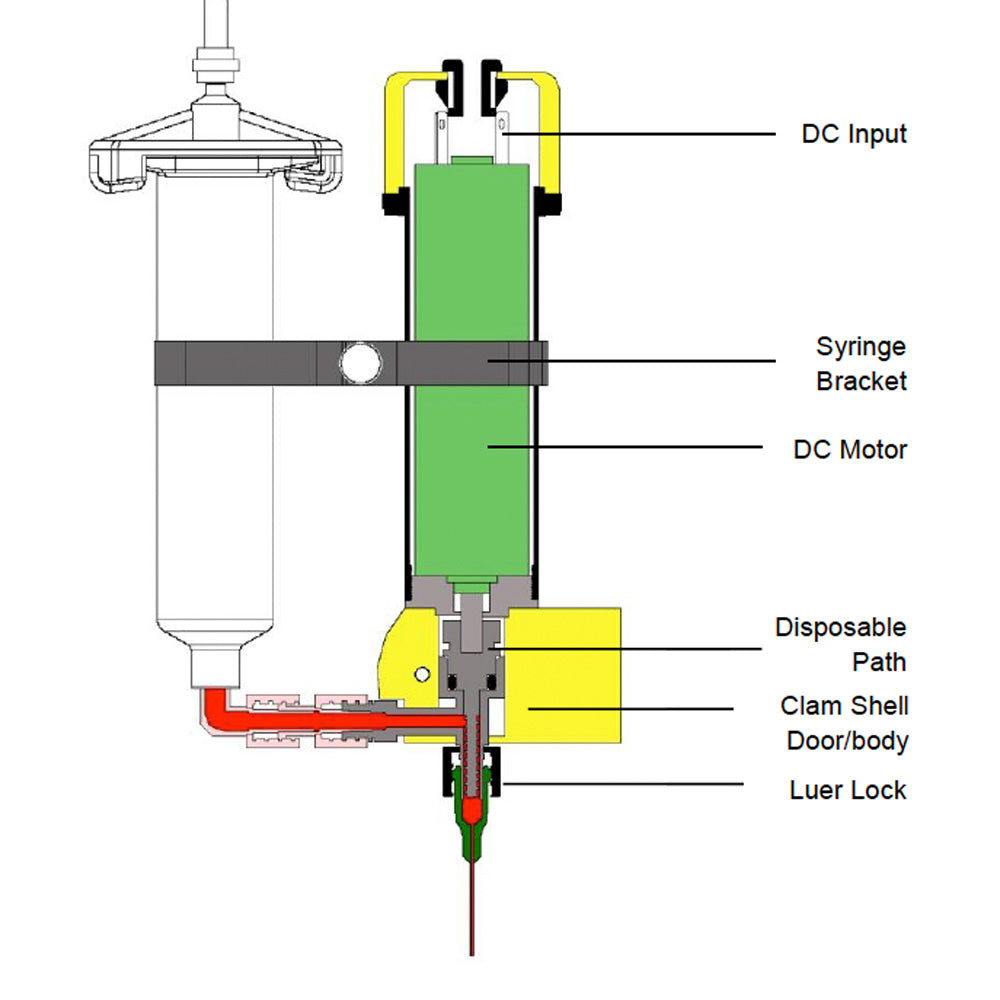

Techcon Systems' patented Disposable Material Path (DMP) valve contains a unique disposable feed path for easy maintenance and reliable dispensing. With the feed path made of Delrin®, the valve is designed for use with two-component epoxy, UV fluids and abrasive fluids. The DMP valve has a hinged doorway that opens easily so the disposable feed path can be removed, disposed of, and replaced within seconds while the line is still in operation. No cleaning or refurbishment of the valve is required.
The DMP is the perfect valve for applications where removing the valve for cleaning is inconvenient and costly. With the ability to remove and replace the disposable feed path, the valve maintains its dispensing accuracy over a greater period of time. With less fluid build up to reduce wear-and-tear on the motor, the valve's usable lifetime is dramatically increased. An optional encoder version is available, for closed loop feedback control.
Techcon Systems TS5000DMP-DCX Series Valve has three options in pitch size: 6, 8 and 16 pitch and all pitch types are available with a fixed or rotating color coded Luer collar.
Common Applications
- Laying a solder paste bead in solar cell tabbing
- Dispensing small deposits of SMA in PCBA production
- Dispense structural adhesive on flexible PCBA
Techcon TS5000DMP Series Valve Features
- Dispensing with motor reverse capability
- UV compatible Delrin® fluid paths
- Rotating tip collar option for bent/oval tips
- Disposable fluid paths - no cleaning required
The Techcon TS5000DMP Series Valves Include
- Mounting bracket kit (including syringe bracket)
- 30/55cc receiver head assembly
- DIN Connector
- Sample DMP kit – 6, 8 and 16 pitch
- Dispensing tip selection pack
Specifications
| Size W x L x H: | 1.45” x 3.6” x 5.88” (37mm x 91mm x 149mm) |
| Weight: |
0.75lb (240g) |
| Fluid Inlet: | Female Luer lock |
| Fluid Outlet: | Male Luer lock |
| Mounting: | 1” (25.4mm) body channel or valve bracket |
| Maximum Fluid Pressure: | 30psi (2.1bar) |
| Wetted Parts: | Delrin®, Nylon, Viton® |
| Cycle Rate: | Exceeds 300 cycles/min |
| Material Viscosity Range: | 30,000 - 1,300,000cps |
| Warranty: | 1 Year |
