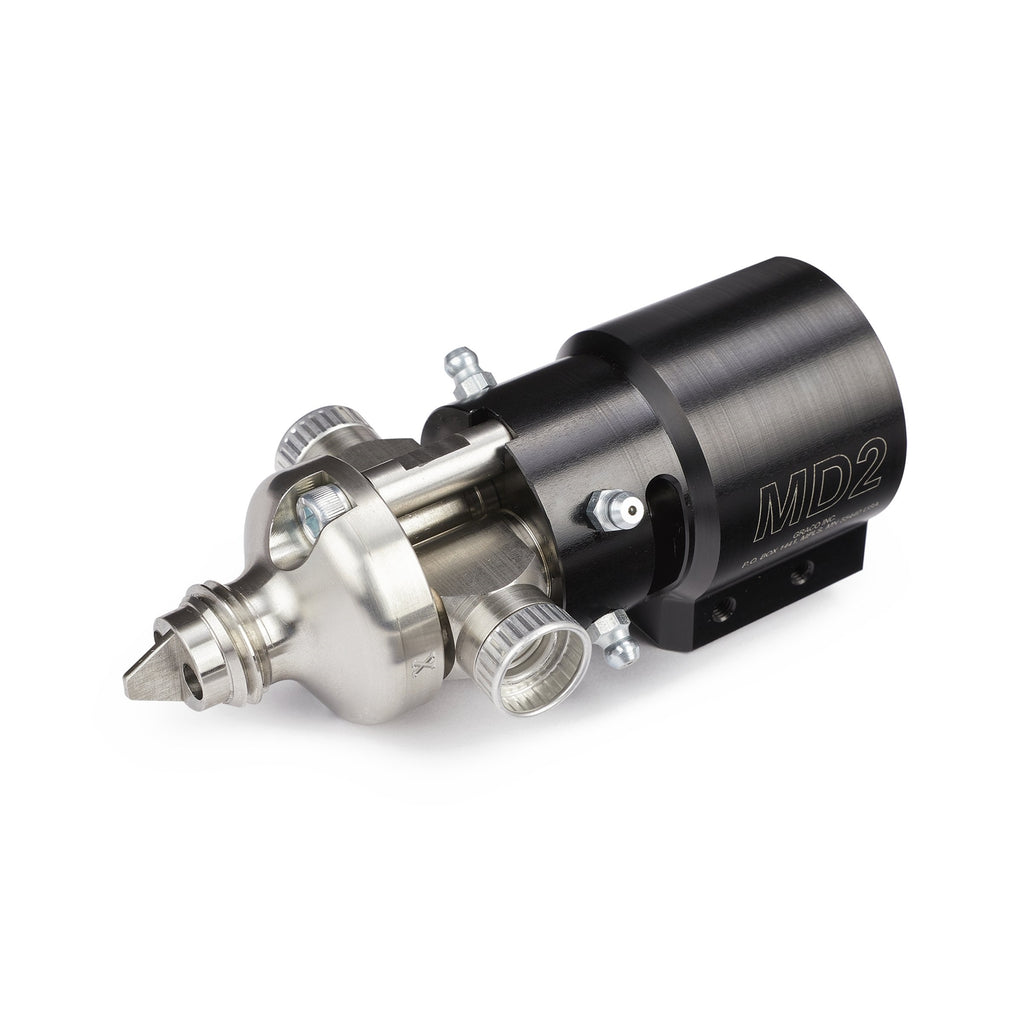

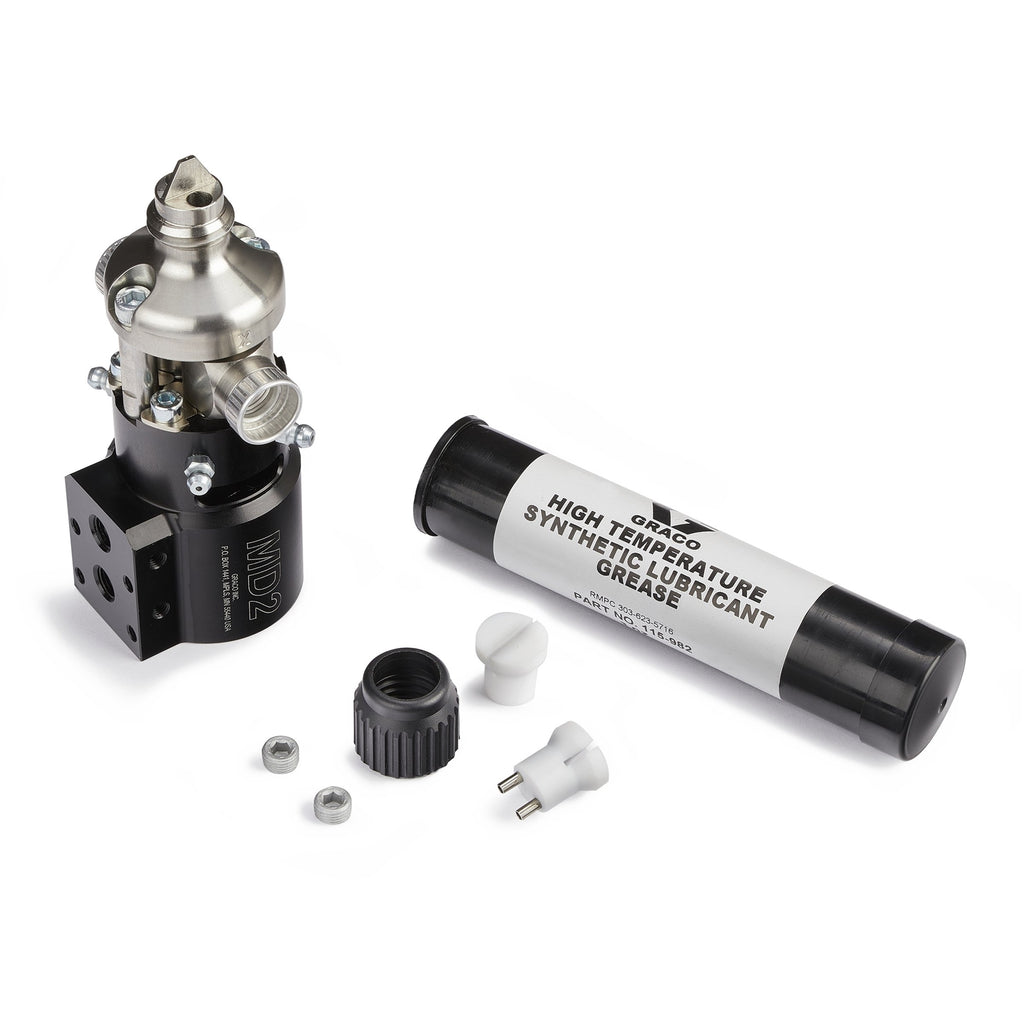

Graco MD2 Elite Two-Component Dispense Valve

Graco MD2 Elite Dispense Valve Overview

Graco's MD2 Elite Dispense Valve is engineered for precision two-component mixing and dispensing, offering exceptional durability and performance in demanding applications. Designed with wear-resistant seals and surfaces, the Elite version withstands abrasive materials such as thermal interface materials (TIMs), silicones, urethanes, and epoxies, lasting at least 10 times longer than standard dispense valves. Available in 1:1 and 10:1 ratios, this high-pressure valve features hard seats, non-adjustable snuff-back, and an adjustable stroke option for maximum control. The modular design streamlines maintenance, ensuring minimal downtime and easy serviceability without special tools.

For standard dispensing applications, consider the Graco MD2 Standard Dispense Valve for a cost-effective solution with multiple seat styles and snuff-back configurations.

MD2 Elite Dispense Valve Options

• Ratio (1:1 or 10:1): Available in both ratios for varied material mixing needs.
• Hard Seat Construction: All Elite models feature hard seats for maximum durability, designed to handle abrasive materials like silicones, urethanes, and epoxies.
• Snuff-Back Type (Non-Adjustable or Adjustable Stroke): Non-adjustable snuff-back provides reliable, maintenance-free shut-off, while the adjustable stroke option allows for precise control over dispense volume and cut-off performance.

MD2 Elite Valve Features and Benefits

• Superior Durability: Built to withstand high-wear materials, extending service life up to 10x longer than standard valves.
• Engineered for Abrasive Materials: Handles thermal interface materials, silicones, urethanes, and epoxies without premature wear.
• Available in 1:1 and 10:1 Ratios: Designed for various two-component material applications.
• Adjustable Stroke Option: Fine-tune dispense stroke for maximum precision and control (Elite models only).
• Independent Air Cylinder: Improves mean time to repair (MTTR) and enhances operational efficiency.
• Grease Isolation Chamber: Protects moisture-sensitive materials while simplifying maintenance.
• All-Stainless Steel Wetted Section: Ensures maximum chemical compatibility and corrosion resistance.
• Optimized Flow Path: Minimizes dead space for improved material flow and reduced waste.
• Modular, Easy-to-Service Design: No special tools required for quick maintenance and part replacement.

Specifications

• Model: MD2 Elite Valve
• Component Type: Plural Component
• Maximum Fluid Pressure: 3000 psi (276 bar)
• Maximum Cylinder Air Pressure: 120 psi (8.4 bar)
• Maximum Air Cylinder Actuating Pressure: 40 psi (2.8 bar)
• Maximum Working Fluid Temperature: 140°F (60°C)
• Wetted Parts: Stainless Steel, Carbide, UHMWPE, Acetal, PEEK, PTFE
• Dimensions: 6.64 in L x 2.32 in W x 2.25 in D (168.7 mm L x 59 mm W x 57 mm D)
• Fluid Inlets: 9/16-18 UNF (f) (06 SAE)
• Air Inlets: 1/8 in NPT
• Graco System Compatibility: PrecisionDose, PR70, EFR, and HFR
