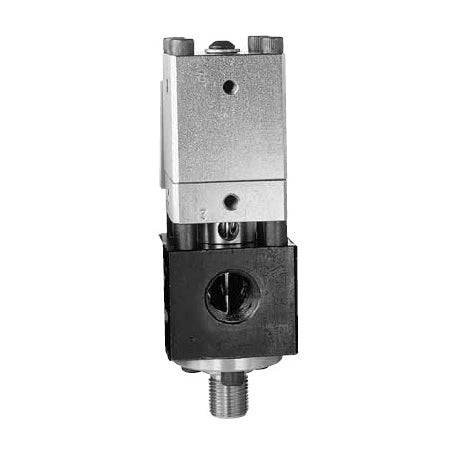

Graco Therm-O-Flow Single Component Dispense Valve

Graco Therm-O-Flow Dispense Valve Overview

Graco Therm-O-Flow Automatic Dispense Valves provide precise and reliable dispensing of high-viscosity materials, including hot melt adhesives. These single-component air-operated valves ensure consistent flow control and are available in multiple configurations, including Snuff Back and Base Seal H.F. models. Designed for seamless integration with Therm-O-Flow 20 or Therm-O-Flow 200 systems, these valves deliver superior performance for industrial applications.

Dispense Valve Options

• Snuff Back Valve: Reduces material stringing after dispensing, ensuring cleaner application.
• Base Seal H.F. Valve: Designed for high-flow applications, providing a clean and precise cut-off.

Voltage Options

• 120V / 6 Pins: Provides reliable heated operation for consistent material flow.
• 240V / 8 Pins: Supports higher power applications with increased heating efficiency.
• Ambient (Non-Heated): Ideal for applications where heating is not required.

Therm-O-Flow Valve Features and Benefits

• Precise Dispensing: Air-operated control ensures consistent material application.
• High Pressure Rating: Supports up to 241 bar (24 MPa, 3500 psi) for demanding applications.
• Durable Construction: Built with stainless steel and high-quality seals for longevity.
• Seamless System Compatibility: Optimized for use with Graco Therm-O-Flow supply systems.

Specifications

• Model: Therm-O-Flow Valve
• Component Type: Single Component
• Applications: Bonding, Sealing, Gasketing
• Material Inlet: 1/2” NPT
• Air Inlet: 1/8” NPT
• Working Pressure: 3500 psi (241 bar)
• Maximum Air Input Pressure: 150 psi (10 bar)
• Weight: Approx. 5 lbs.
