Fine Mist Spray Valve for Fluid and Adhesive Dispensing
About the Techcon TS5520 Fine Mist Spray Valve for Fluid and Adhesive Dispensing

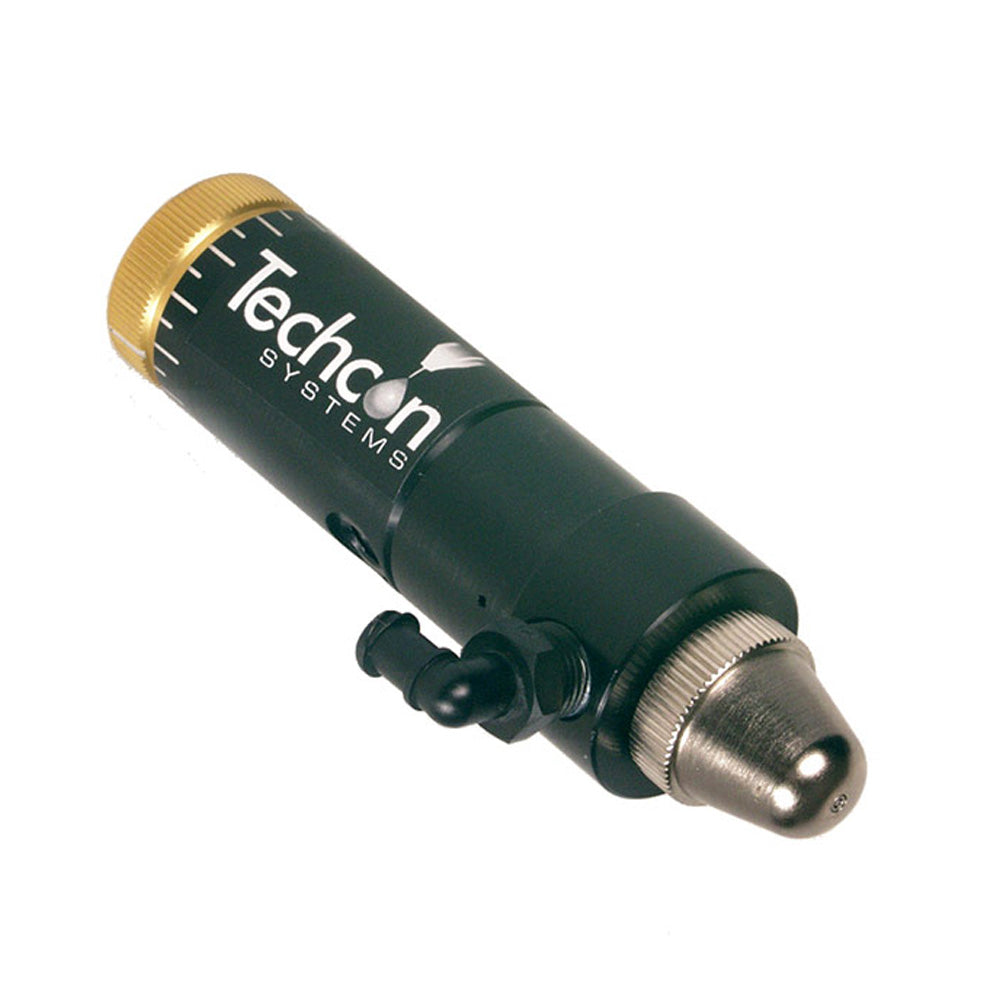

The Techcon TS5520 is a low cost option for precision spray applications. The TS5520 can apply a fine mist spray from a wide range of low viscosity materials and adhesives. This dispensing valve provides a low cost, low maintenance method to create a great fluid or adhesive spray system.
View Complete Configurable Syringe Dispensing Systems
The Techcon TS5520 Fine Mist Spray Valve Is Used to Dispense
| Activators | Alcohol | Flux Liquids | Regents |
| Solvents | Low Viscosity Materials | - | - |
Details
The Techcon TS5520 is an economical dispensing valve for applying low viscosity materials and adhesives in a fine mist spray. The TS5520 utilizes an external stroke control mechanism to fine tune dispensing volume. The spray can be controlled throughout the dispensing process including pre-spray, atomizing air and post spray when used in conjunction with the TS500R digital controller.
Common Applications
- Spraying conformal coating onto PCBA's
- Spraying oil for lubrication applications
- Spraying ink to indicate Pass or Fail
Techcon TS5520 Spray Valve Features
- Consistent spray coverage
- No overspray
- Positive shut-off
- Adjustable flow control
The Techcon TS5520 Spray Valve Includes
- Mounting bracket kit
- Valve air hoses
- Luer lock fluid line
- Fluid inlet fittings - 1/4'' compression and Luer lock type
Specifications
| Valves: | TS5520 |
|
Size Ø x H |
1.12” x 4.2” (28mm x 107mm) |
| Weight | 0.3lb (136g) |
| Fluid Inlet | 1/8” NPT |
| Fluid Outlet | Cone Spray Nozzle |
| Mounting | 1/4-20UNC-2B |
| Maximum Fluid Pressure | 100psi (6.9bar) |
| Minimum Operating Pressure | 70psi (4.8bar) minimum |
|
Wetted Parts |
303 SS, Teflon®, Anodized Al, EPR |
|
Cycle Rate |
Exceeds 400 cycles/minute |
| Material Viscosity Range | 1 - 1000cps |
| Warranty | 1 Year |
| Nozzle Model |
Opening Dia. | Cone Nozzle |
Fan Nozzle |
|
TS5520 |
0.046" (1.17mm) | TS5520 (Standard) |
Accessories
Works With
- Techcon TS500R Digital Controller
