Pneumatic Pinch Tube Valves for Fluid and Adhesive Dispensing

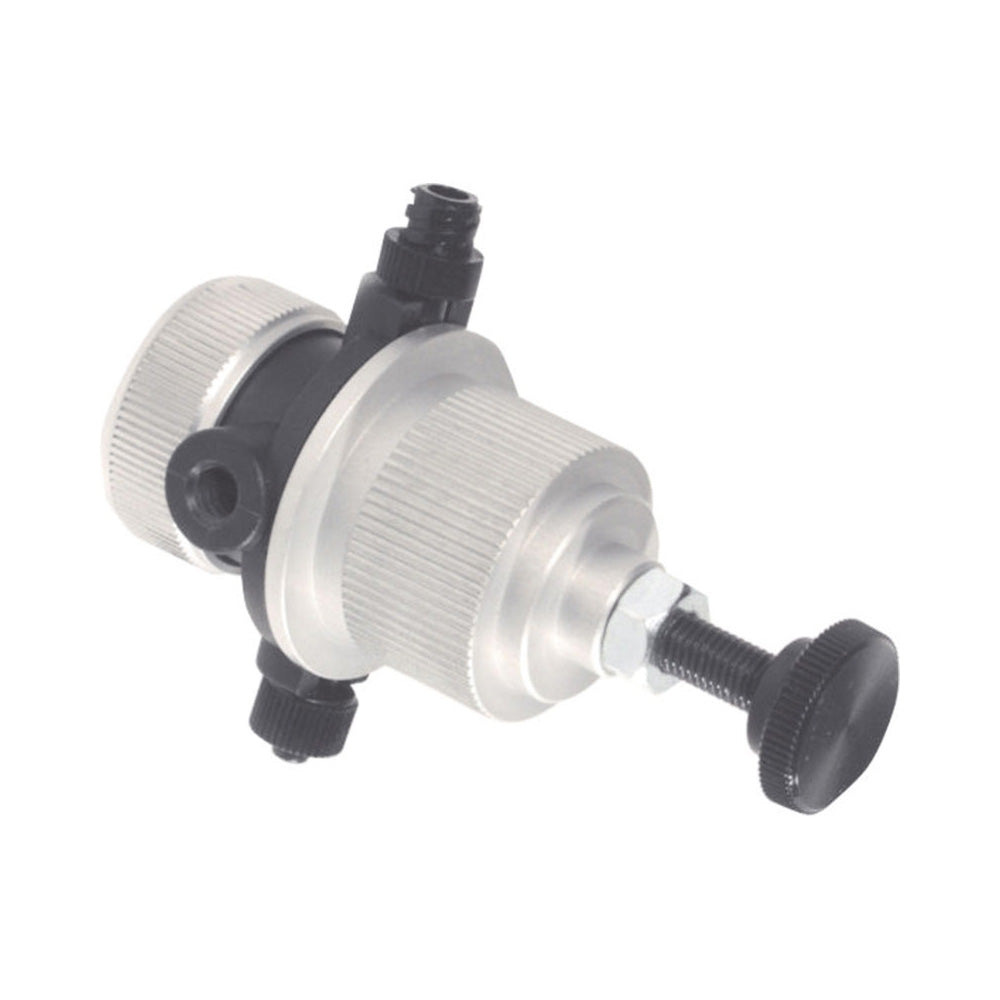

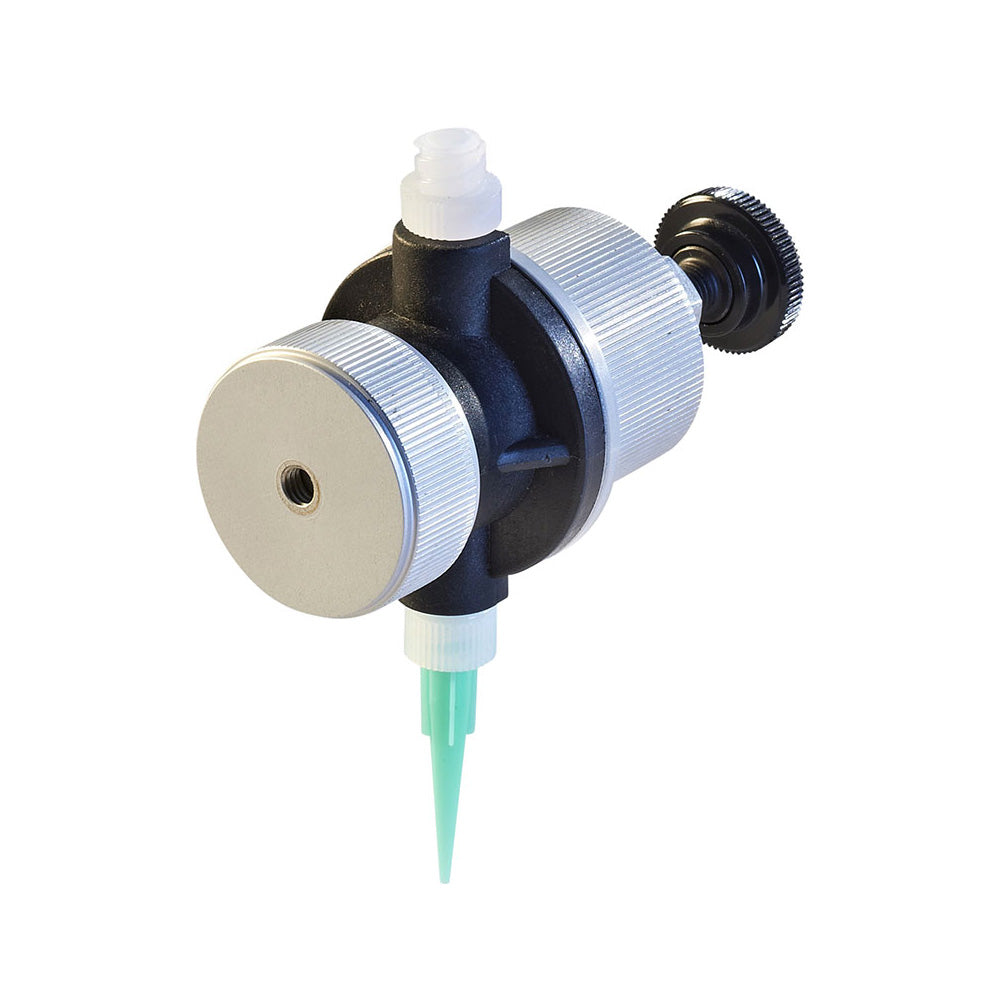

About the Techcon TS1212 Pneumatic Pinch Tube Valves for Fluid and Adhesive Dispensing
This simple to use disposable pinch valve is used for adhesive and fluid dispensing of low viscosity materials. This valve works together with a controller that can send a pre-programmed air that automatically opens and closes a molded polyethylene tube assembly (hence the name 'pinch valve').
View Complete Configurable Syringe Dispensing Systems
The Techcon TS1212 Pinch Tube Valve is Used to Dispense
| Activators | Alcohol | Anaerobics | Cyanoacrylates |
| Epoxies | Flux (Liquid) | Inks | Lacquers |
| Mold Releases | Oils | Paints | Regents |
| Solder Masks | Solvents | Two Part Adhesives | UV Cure with Anaerobic |
Details

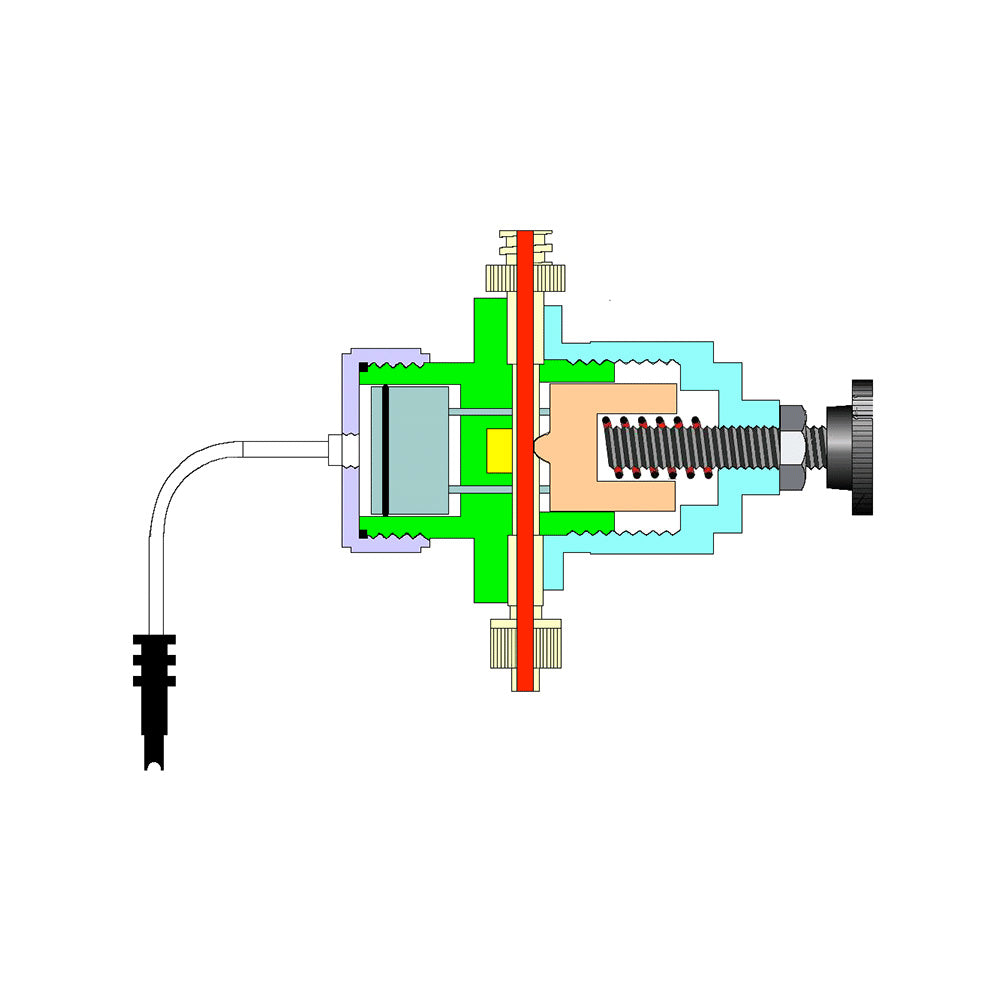

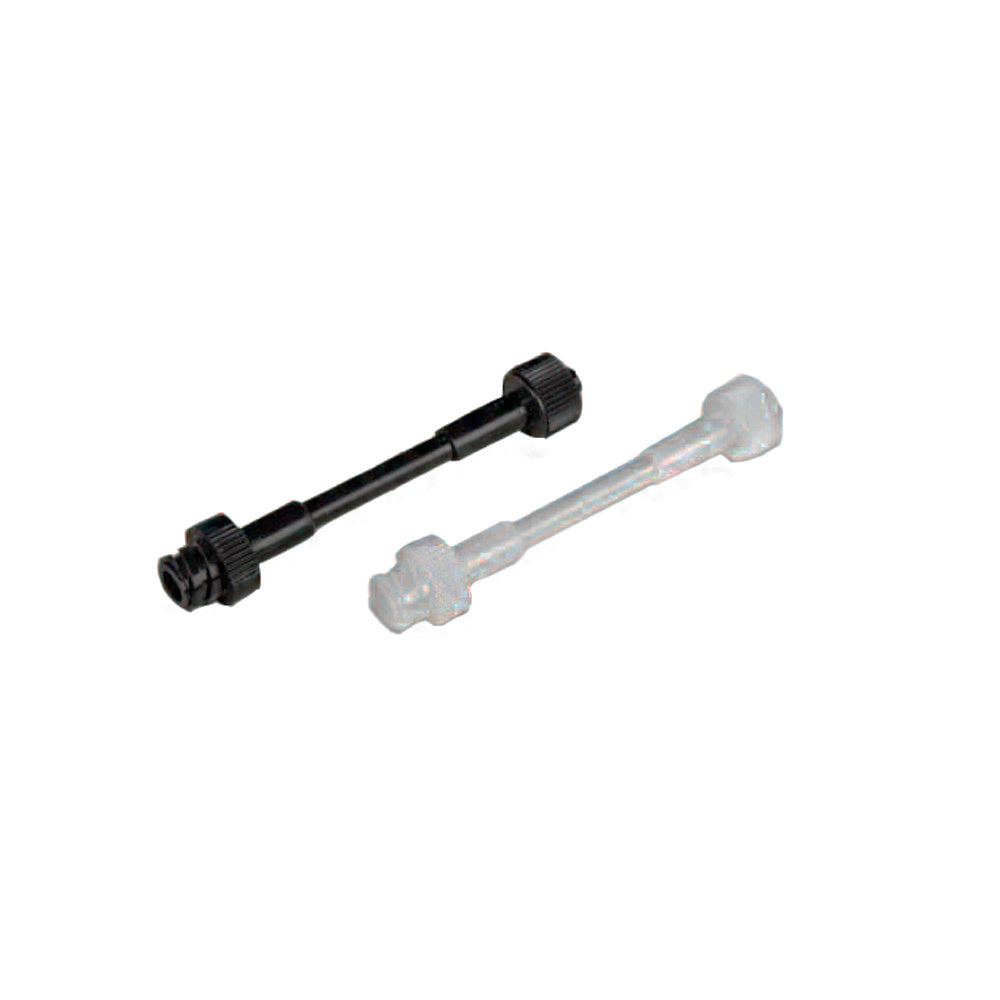

The Techcon TS1212 pneumatic pinch tube valve allows for continuous or micro-shot dispensing of a wide range of fluid and adhesive materials. This valve is controlled by 'pinching' a tube that works in concert with the valve. Pinch tubes come in a range of sizes and materials to control the flow rate and shot size. The shot size can be further fine-tuned by needles and tips.
Features
- Disposable fluid path
- Simple to operate
- Compact size and weight
Recommended Components and Accessories
Pressure Tanks
- Techcon TS1254
- Techcon TS1258
Needles and Tips
Specifications
- Typical Applications: Cyanoacrylates, anaerobics, two-part adhesive, etc.
- Length: 2.49” (63mm)
- Diameter: 1.58" (40mm)
- Weight: 0.18 lb. (82 g)
- Wetted Parts: Polyethylene (standard), Polyurethane (optional)
- Viscosity Range: 1-45k cps
- Max Fluid Pressure: 60 psi (4.1 bar)
- Material Inlet: Female Luer Lock
- Material Outlet: Male Luer Lock
- Mounting: 1/4"-20UNC-2B
- Activation Pressure: 50 psi (3.4 bar) minimum
