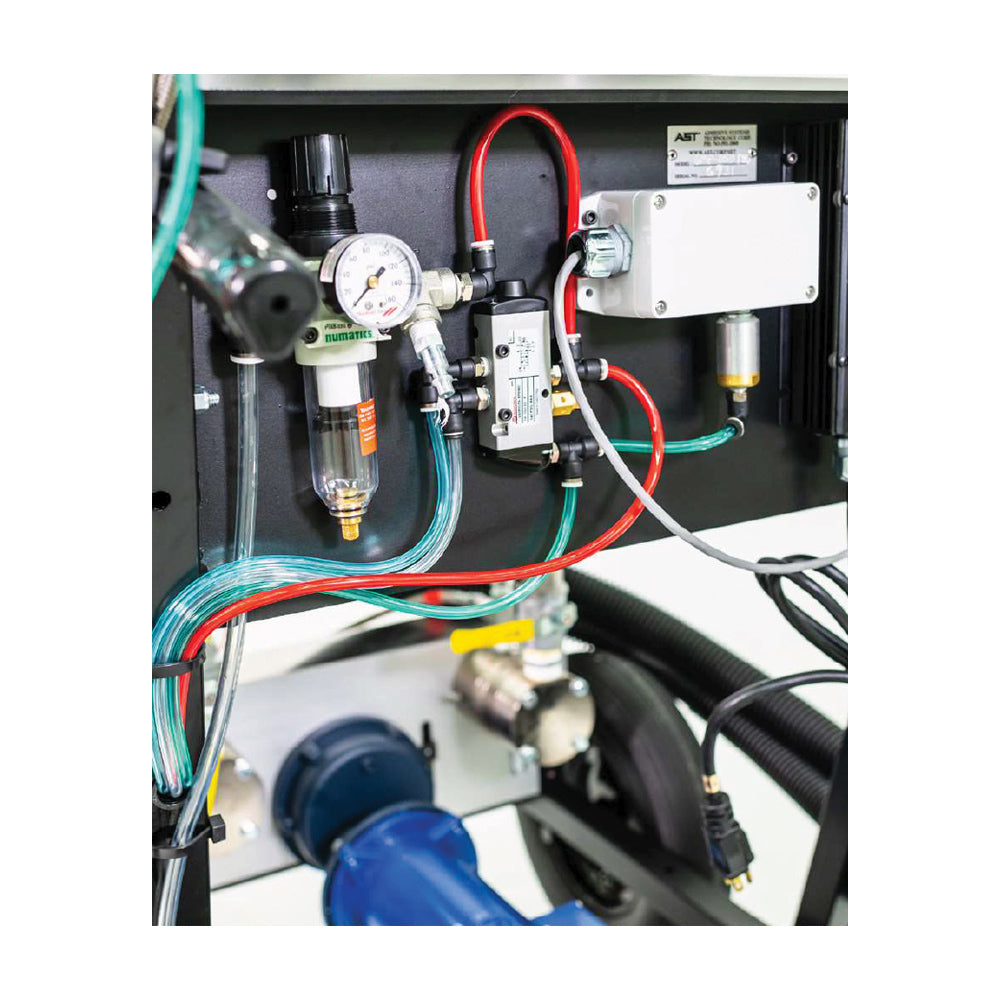

View of mounted components on the back of the AST GMP-050-Spray dispensing system
Worker using the AST GMP-050-Spray dispensing wand

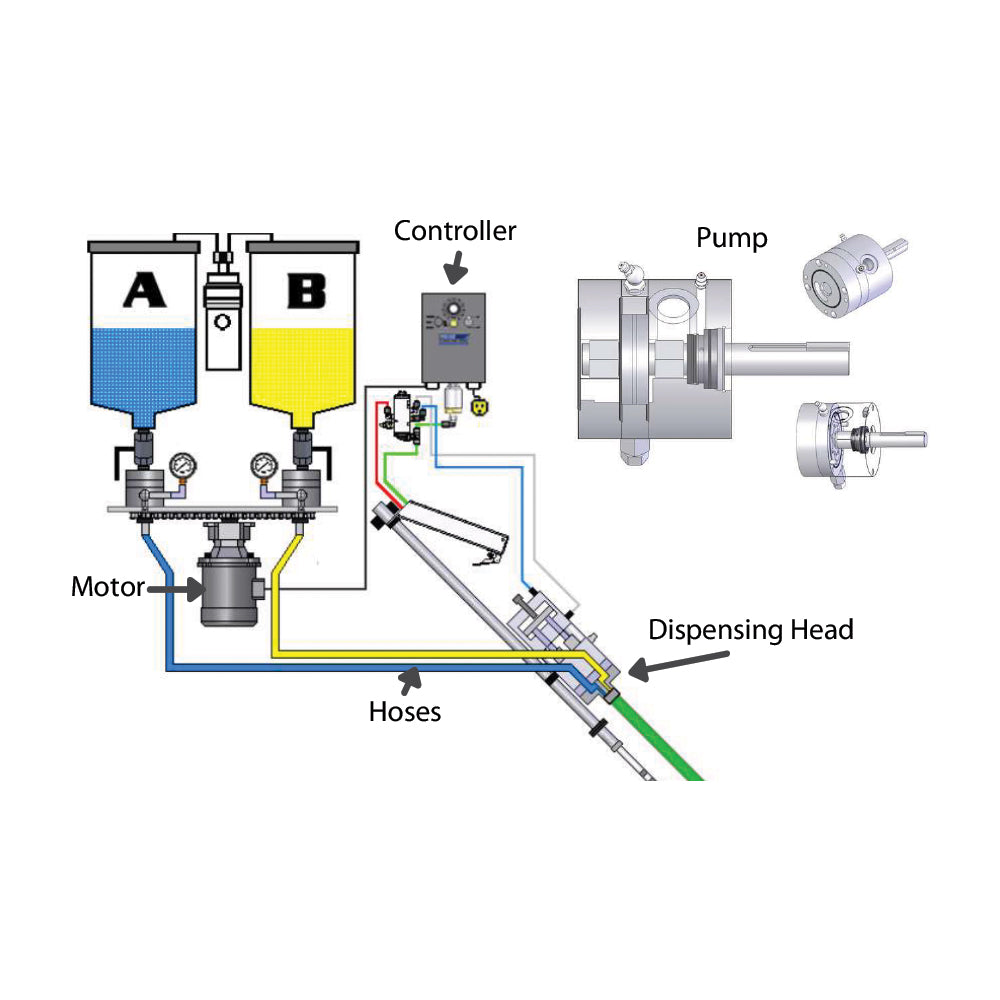

Technical drawing of AST-GMP-050-Spray
Roll over image to zoom in Click on image to zoom
Back view of the AST GMP-050 Spray dispensing unit
Spray Pump for Two Part Epoxy, Polyurea and Urethane (AST GMP 050 SPRAY)
AST GMP 050 Spray Dispensing System Application Video
AST GMP 050 Spray Dispensing System in the Field
Back view of the AST GMP-050 Spray dispensing system for two-part epoxy, polyurea, and urethane
View of mounted components on the back of the AST GMP-050-Spray dispensing system
Worker using the AST GMP-050-Spray dispensing wand
Technical drawing of AST-GMP-050-Spray

Spray Pump for Two Part Epoxy, Polyurea and Urethane (AST GMP 050 SPRAY)

SKU: AST GMP-050-SPRAY

Manufacturer Part #: GMP-050-SPRAY

Made in the USA

Used to Dispense

  • Polyureas
  • Unfilled Epoxies
  • Unfilled Urethanes

Common Applications

  • Low Pressure Spray
  • Concrete Repair
  • Deck Coating
  • Waterproofing

AST GMP 050 SPRAY Portable Dispensing Pump System Overview

The AST GMP-050-SPRAY is an advanced metering and mixing solution tailored for small-scale spray applications with two-part epoxies, polyureas, and unfilled urethanes. Engineered for versatility and precision, this spray pump offers exceptional dispensing control and efficient application, making it a perfect choice for a wide range of industrial settings.

Combining ease of operation with industrial-grade durability, the AST GMP-050-SPRAY features a robust, portable design constructed from high-quality stainless steel to withstand the rigors of demanding work environments. Its user-friendly interface simplifies operation and maintenance, while AST's reliable warranty ensures lasting performance and peace of mind. This spray pump is not just a tool—it's a durable solution designed to enhance productivity and deliver consistent, high-quality results.

GMP 050 Spray Features and Benefits

  • Portable and Reliable: Engineered for ease of transport and robust performance in various environments.
  • Enhanced Dispensing Control: Offers precise control for consistent application results.
  • Ideal for Various Materials: Suitable for spraying polyureas, unfilled urethanes, and epoxies.
  • Operator-Controlled Air Purge: Allows for easy cleaning and maintenance between uses.
  • Low-Pressure, Ambient-Temperature Spray: Minimizes material waste and enhances safety.
  • Low Overspray: Reduces material usage and keeps the workspace cleaner.

Specifications

  • Series: AST GMP 050-SPRAY
  • Motor: 1/2 HP Drive, 90 Volt
  • Ratio Range: 1:1 to 4:1
  • Tank Size: 2 Stainless Steel, Each 8.5 Gallons
  • Viscosity Range: 100 cps to 7,500 cps
  • Services Required 120V / 15 AH, 5 Amp, 90 psi, 6 cfm
  • Volume Output: Up to 0.4 gpm
  • Pump: 2 APPLIED Gerotor Pumps with External Lubrication
  • Dimensions: 36" L x 30" W x 44" H
  • Weight: 200 lbs

Common Compatible Materials

  • Polyureas
  • Unfilled Urethanes
  • Unfilled Epoxies
  • Ardex Ardiseal Rapid Plus
  • Elite Crete Systems JFS-680P Grid-Lock
  • Euclid Qwik Joint
  • HTS PE-85
  • Metzger McGuire RS 88
  • Sherwin Williams JF 311
  • Sika Loadflex
  • SpecChem Rapidflex CJ
  • Versaflex SL45
  • Versaflex SL60
  • Versaflex SL75
  • Versaflex SL85
  • Contact us to see if your material is compatible

Downloads

About AST Equipment

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
