Graco PGM Precision Gear Metering System

Precision Gear Metering System for Sealants and Adhesives

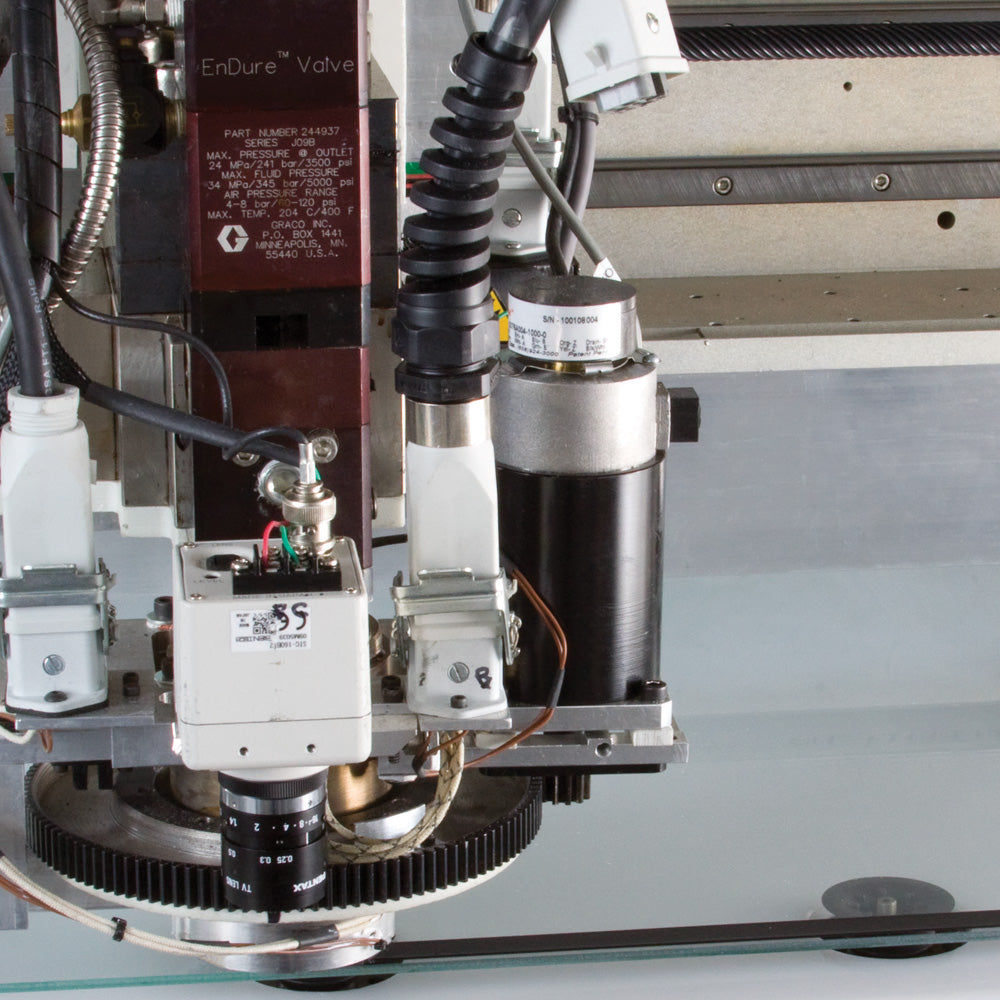

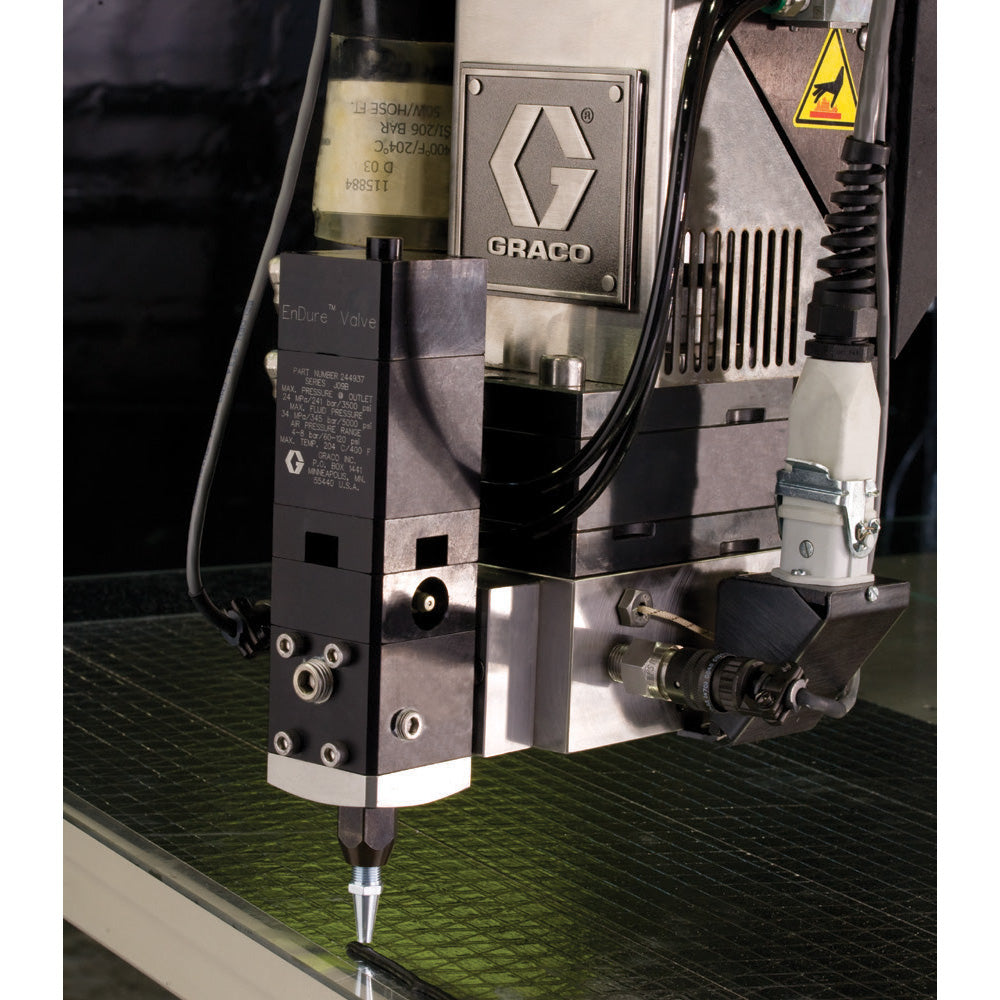

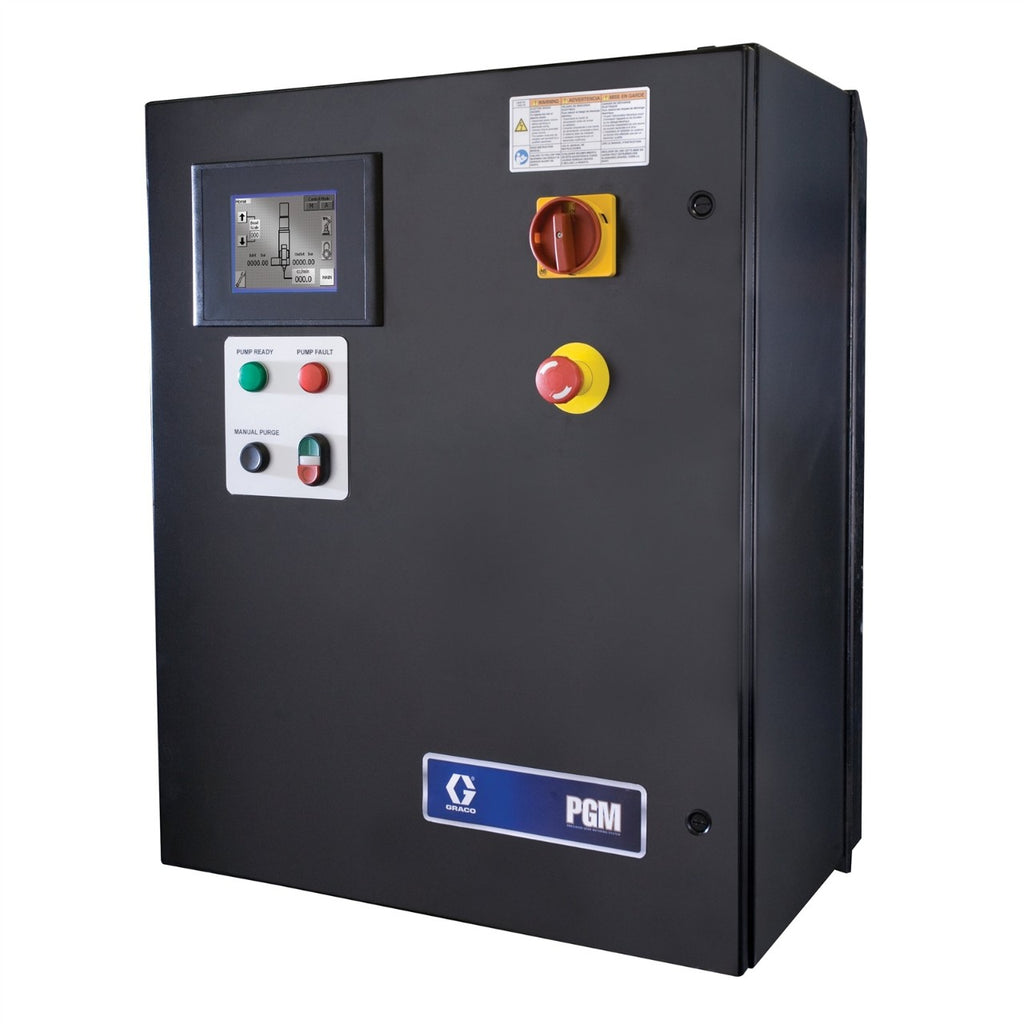

The Graco PGM Metering System™ delivers precise metering and high flow rates, ensuring smooth, consistent bead and ribbon dispensing—even with high-viscosity hot melt materials. Its precision gear metering technology provides clean starts and stops, reducing material waste while enhancing productivity. With user-friendly touch-screen controls and seamless integration capabilities, the PGM system is ideal for high-performance manufacturing environments.

PGM System Features and Benefits

• Precision Metering: Ensures accurate, repeatable bead and ribbon dispensing for consistent quality.
• High Flow Capability: Handles high-viscosity materials with flow rates up to 1,600 cc/min.
• Clean Starts & Stops: Minimizes stringers and excess material waste for cost efficiency.
• Operator-Friendly Controls: Intuitive touch-screen interface with integrated self-diagnostics for easy operation and maintenance.
• Compact & Versatile: Fixed or machine-mountable design allows flexible installation.
• Seamless Integration: Easily integrates into automated production lines for streamlined operations.

Applications & Industries

• Solar Panels
• Automotive Manufacturing
• Windows & Doors
• Appliances
• Filters
• Electronics
• Small Engine Gaskets
• General Assembly

System Specifications

• Model: PGM (Precision Gear Metering)
• Type: Metering System
• Compatible Materials: Sealants, Adhesives; Ambient, warm melt, and hot melt materials up to 400°F (204°C); low to high-viscosity materials.
• Component Type: Single Component
• Flow Rates:
• Max. (6 cc/rev Pump): 480 cc/min
• Max. (20 cc/rev Pump): 1,600 cc/min
• Viscosity Range: 1,000 to 1,000,000 cps
• Maximum Air Pressure: 100 psi (7 bar)
• Maximum Fluid Working Inlet Pressure: 1,500 psi (103 bar)
• Maximum Fluid Working Outlet Pressure: 2,500 psi (172 bar)
• Maximum Operating Temperature: 400°F (204°C)
• Power Supply: 240 VAC, 50-60 Hz, 1-ph
