Basic Benchtop Fluid Dispensing System with Foot Pedal

Basic Benchtop Fluid Dispensing System with Foot Pedal Overview

This benchtop dispensing system is designed for precise fluid applications, it features a pneumatically actuated diaphragm dispense valve mounted on an adjustable arm stand. Activated by a foot pedal-controlled digital controller, this system provides precise, hands-free dispensing. Operators can choose between Manual Mode (continuous dispensing while the pedal is pressed) or Timed Mode (repeatable single-pulse volumes), making it ideal for dots, beads, potting, and encapsulation applications.

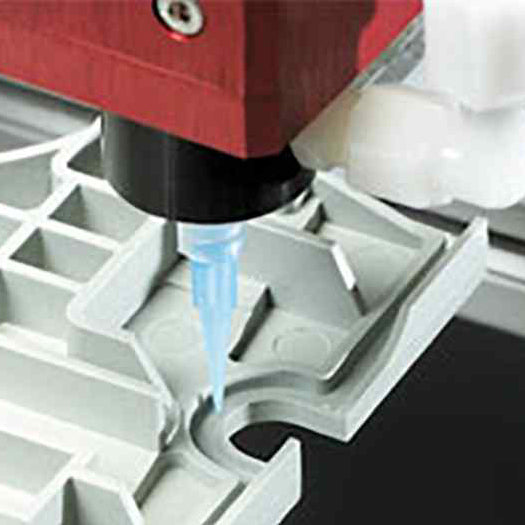

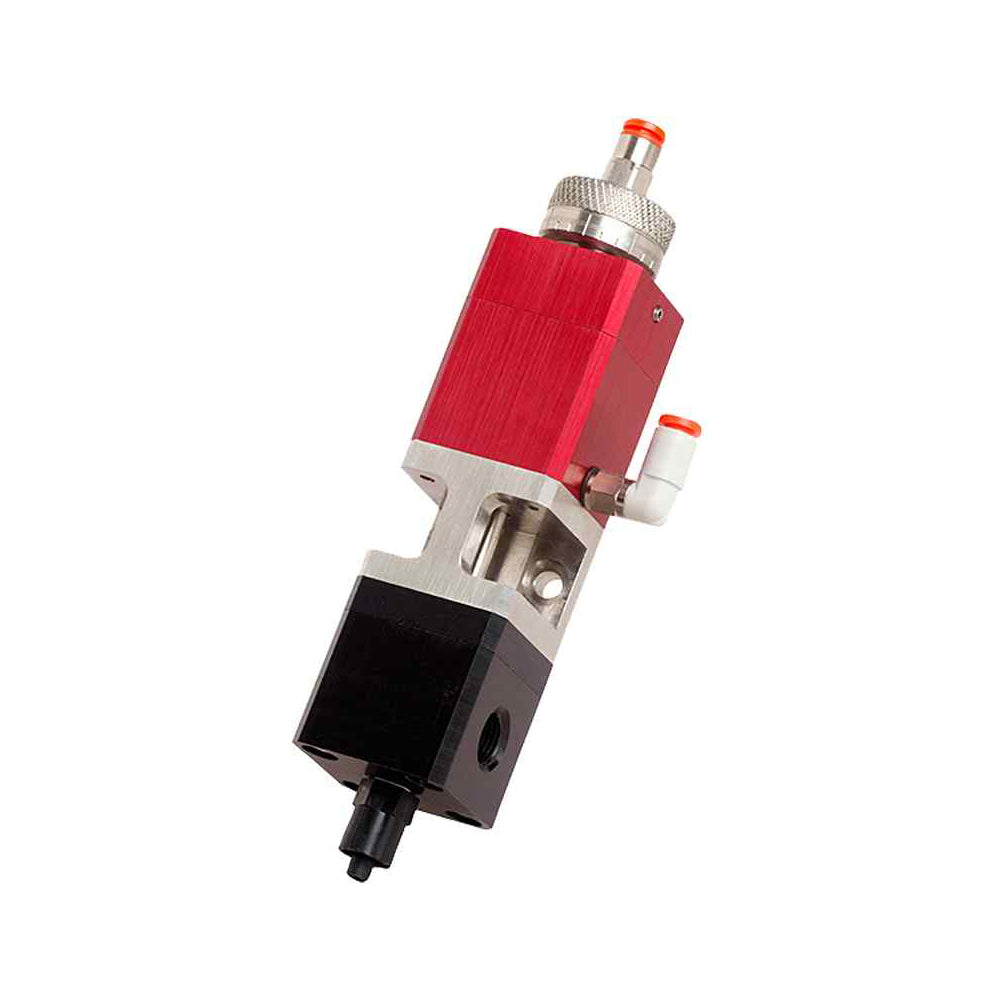

Diaphragm Dispensing Valve

The lightweight, all-plastic diaphragm valve is designed for accurate, controlled fluid application in benchtop environments. Its dual-acting air cylinder and rigid diaphragm enable precise shutoff, making it well-suited for small dot placement and fine bead patterns. With a divorced valve design, the air section is completely separated from the fluid path, preventing contamination and ensuring reliable dispensing.

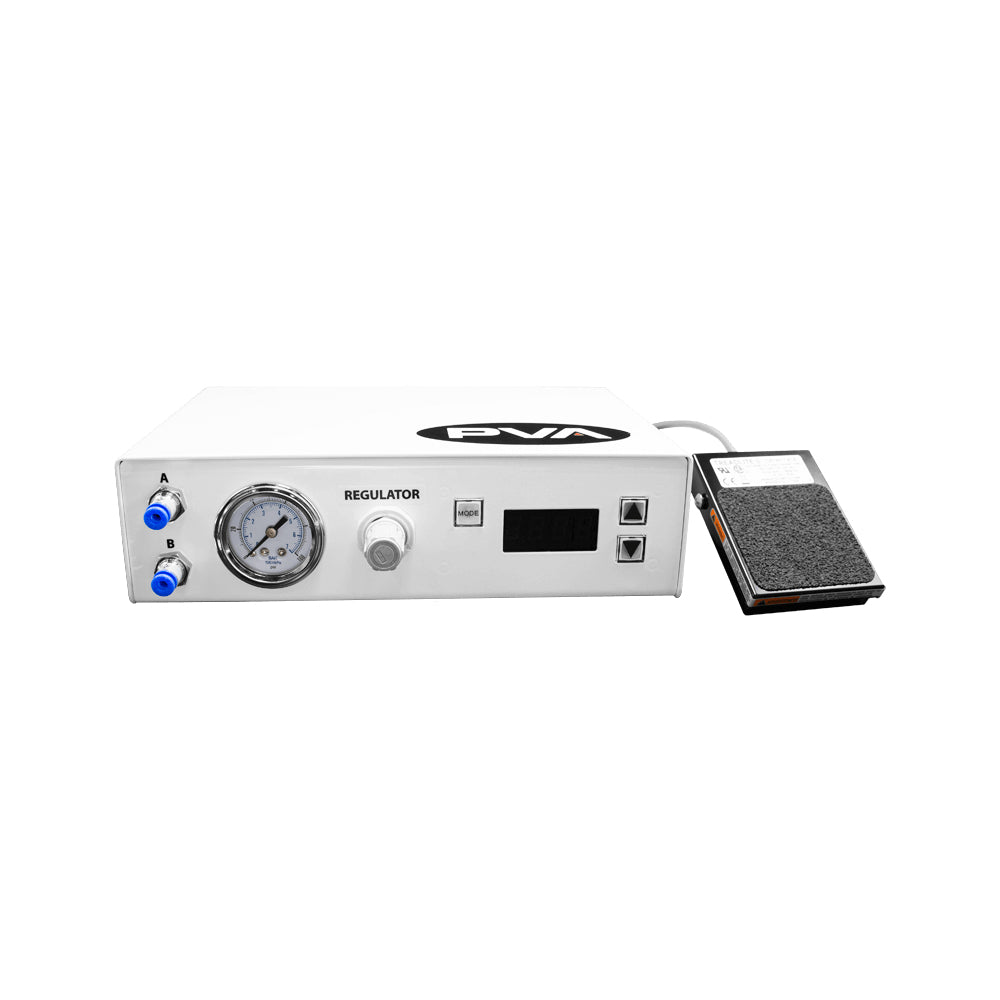

Digital Benchtop Controller

This compact digital shot timer controller improves dispensing accuracy while reducing waste and cleanup. Ideal for benchtop applications, it includes a digital timer with an LED display (adjustable from 0.001 to 99.99 seconds) for precise control and an integrated pressure system with a built-in regulator and gauge for consistent fluid output. A hands-free electric foot pedal minimizes operator fatigue, while multiple modes—manual, timed, and teach mode—offer versatile dispensing options.

Fluid Supply Options

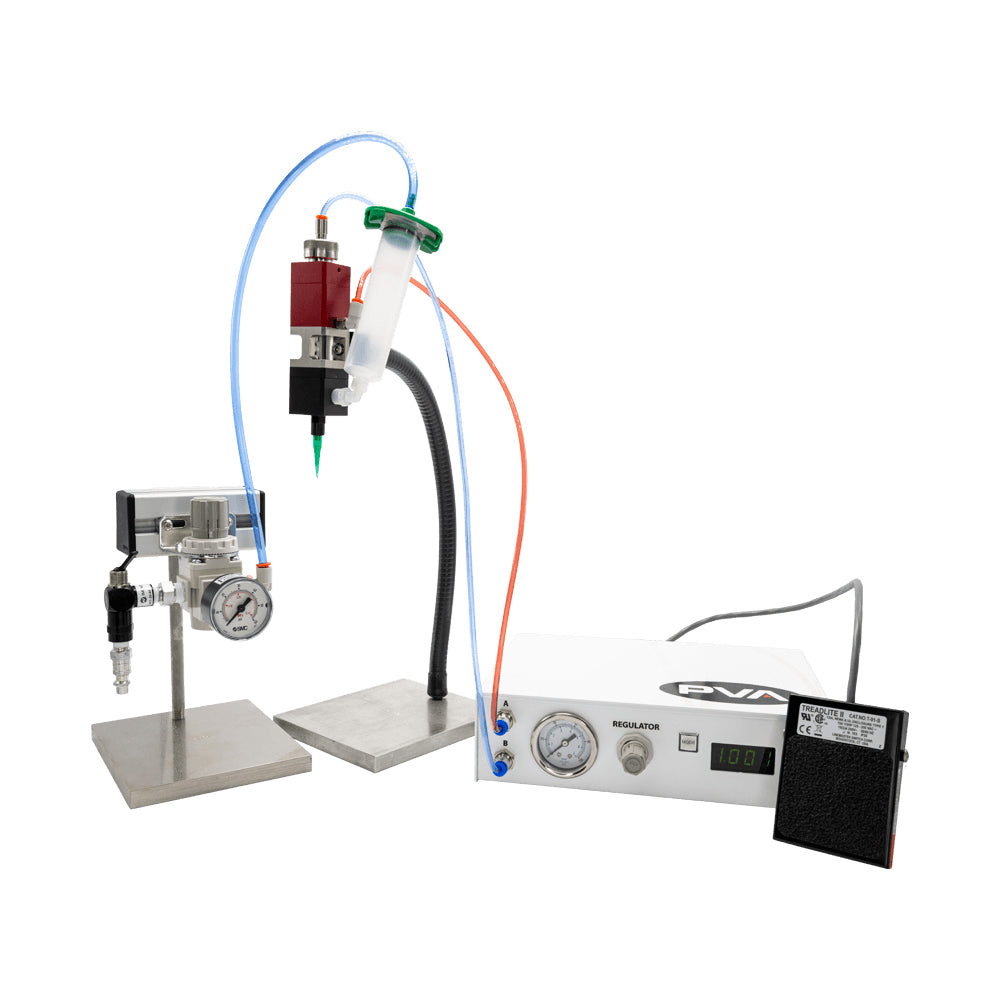

• Syringe: A direct syringe mount allows fluid to be threaded into the valve for compact dispensing applications. Compatible with 3, 5, 10, and 30 cc syringes (optional air caps available).

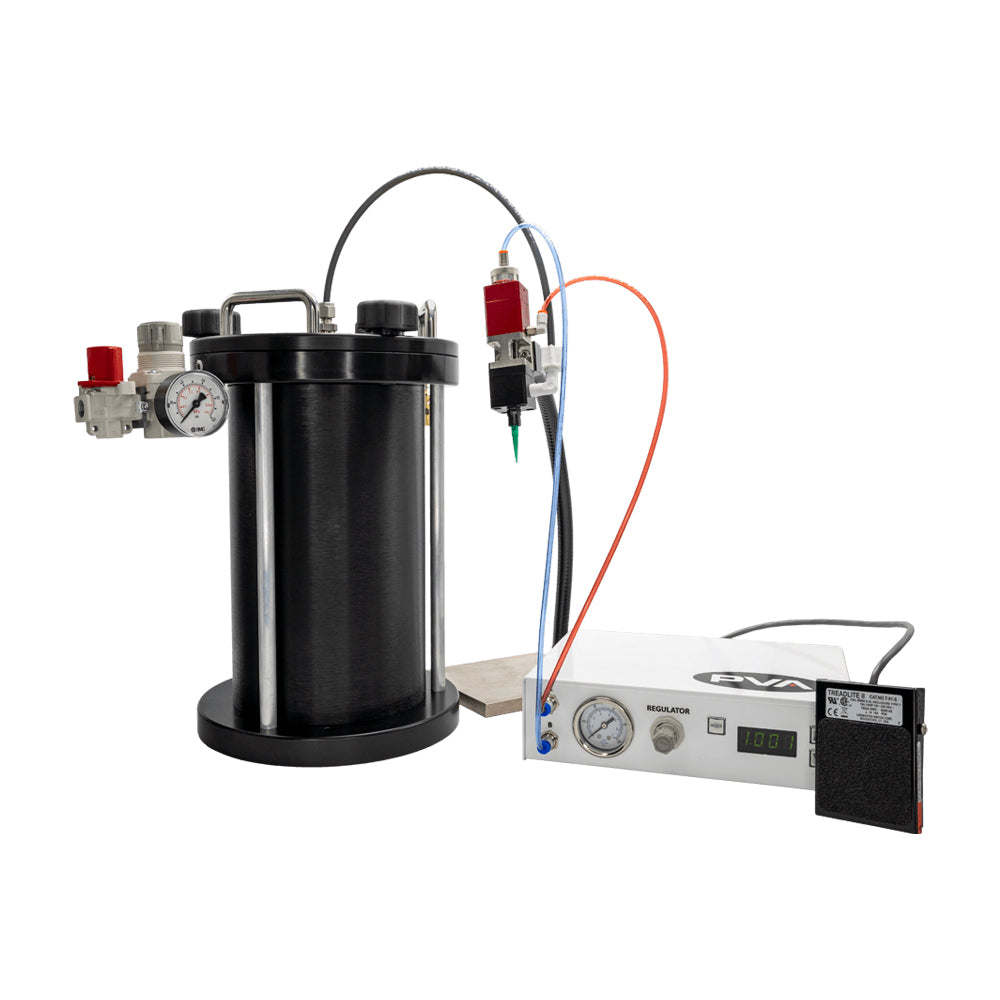

• 2-Liter Pressure Tank: Compatible with 1L or 2L bottles, eliminating the need to pour fluids into a container, reducing contamination risks.

Features and Benefits

• Hands-Free Operation: Foot pedal control allows for effortless and precise dispensing.

• Manual & Timed Modes: Choose between continuous flow or repeatable single pulses.

• Multiple Fluid Compatibility: Suitable for cyanoacrylates, anaerobic adhesives, UV-curable adhesives, epoxies, and more.

• Divorced Valve Design: Prevents fluid contamination of the air section for longer valve lifespan.

• Easy Setup: Includes fluid and air fittings with 6 ft of tubing for immediate use.

• Optional Remote Activation: Supports an I/O cable for external system integration.

System Specifications

• Dispense Valve: Pneumatically Actuated Diaphragm Dispense Valve

• Dispense Outlet: Luer Lock Adapter

• Controller: Digital Benchtop Controller

• Fluid Viscosity Range: 1 cps - 50,000 cps (varies by fluid supply)

• Compatible Fluids (Dependent on System):

  • Cyanoacrylates

  • Anaerobic Adhesives
  • UV-Curable Adhesives

  • Epoxies

• Wetted Components: Delrin, Teflon, Polypropylene

• Air Requirement: 80 psi (5.5 bar)

• Power Requirements: 115V/230V, 50-60 Hz
