Industrial Pail Dispensing System for Adhesives and Sealants (AST SE-5)

SKU: AST SE-5


Made in the USA

Used to Dispense

  • Silicones
  • Single Part Urethanes
  • Acrylics
  • Sealants
  • Adhesives

Common Applications

  • Beads
  • Ribbons
  • Potting and Encapsulating
  • Sealing
  • Cartridge Filling
  • Filling Transfer

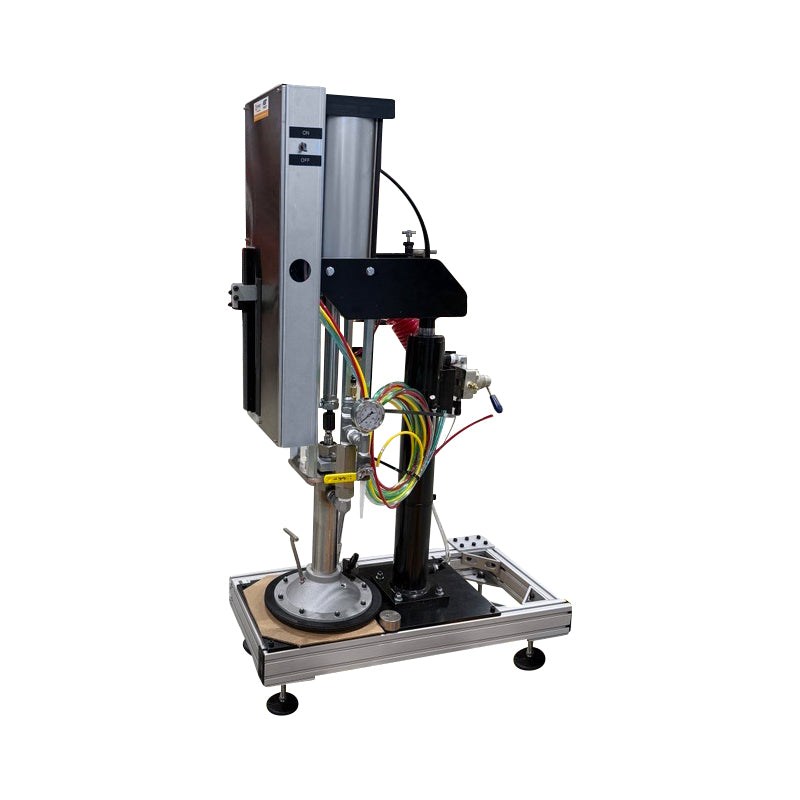

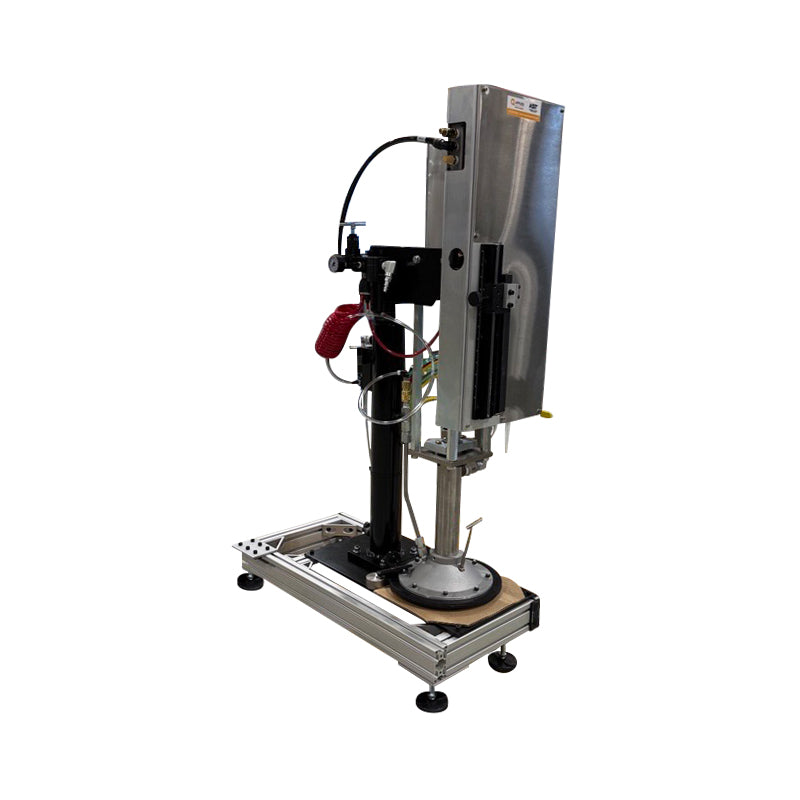

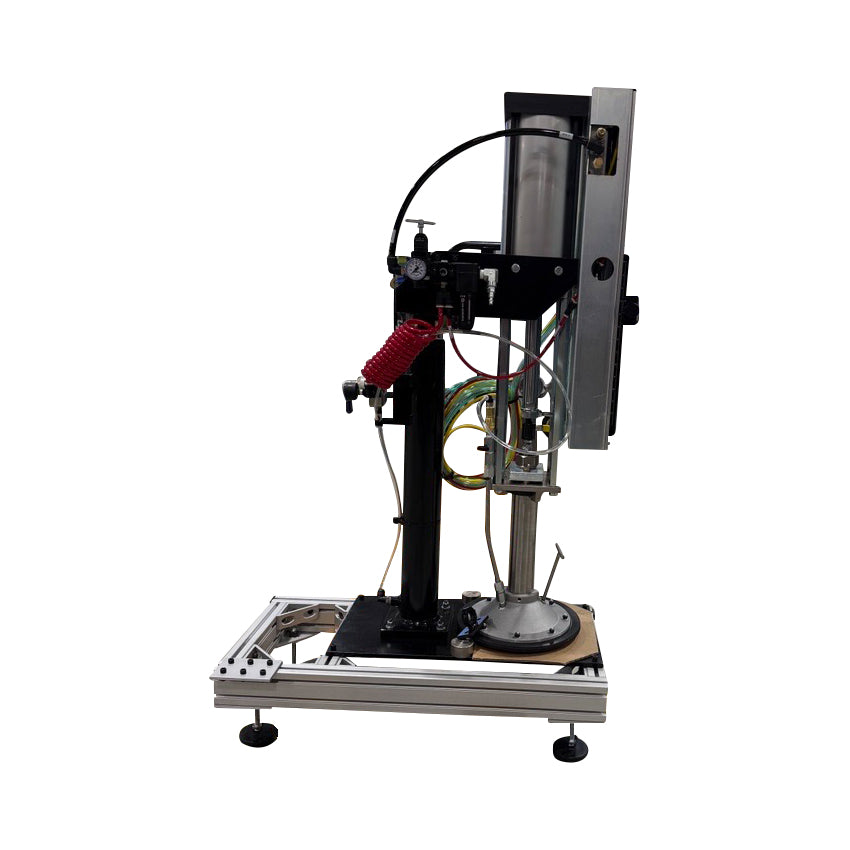

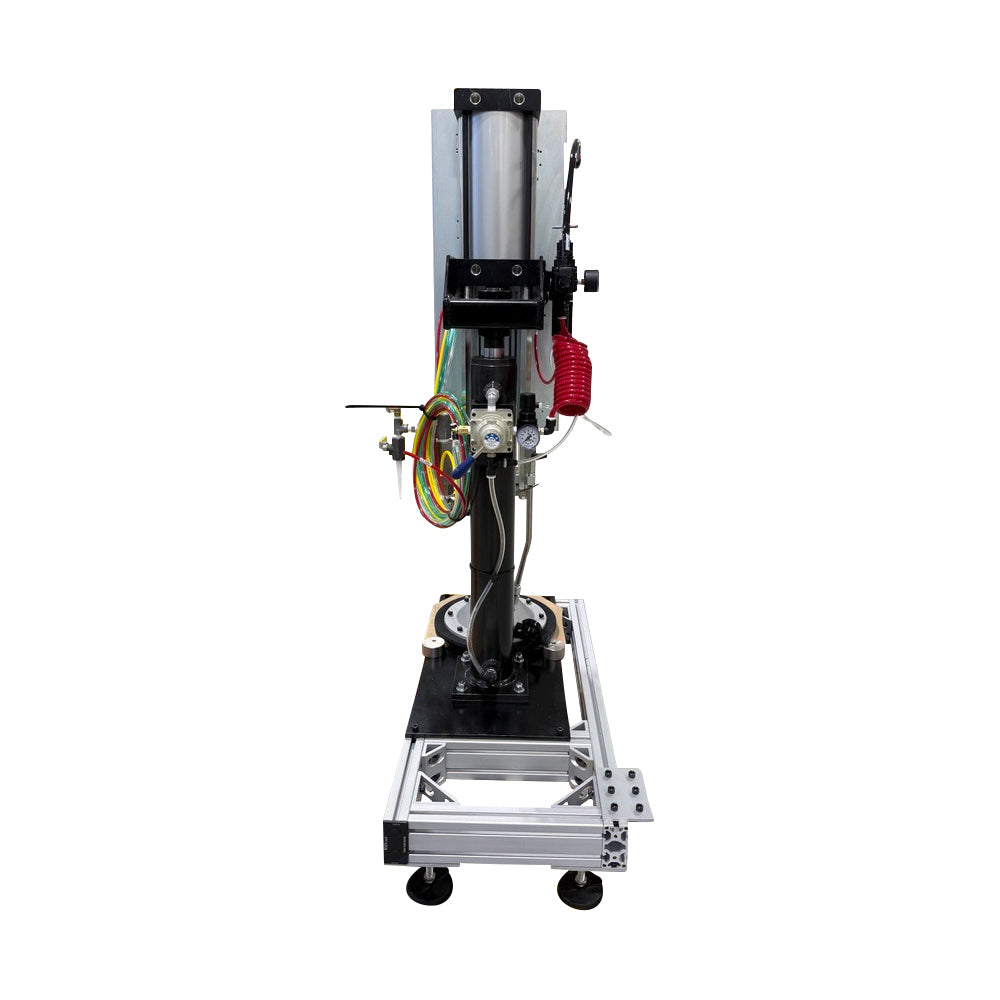

Single Component 5 Gallon Pail Dispensing System Overview

The AST SE-5 is a stationary, industrial-grade pail pump dispensing system that excels in single-component metered shots. Designed for exceptional accuracy and repeatability, it supports continuous operation for high-throughput production environments. Ideal for bead and ribbon dispensing in product assembly and electronic potting, the SE-5 also handles filling transfer and cartridge filling with ease. Built to dispense challenging materials—including silicones, single-part urethanes, and MMA (Methyl methacrylate) adhesives—it maintains consistent output across a wide viscosity range up to 1,000,000 cps.

SE-5 Dispense System Features and Benefits

  • CMP Metering Pump: Ensures consistent material output for both shot-based and automated processes
  • Metered Shots with Continuous Operation: Supports high-cycle applications with consistent shot accuracy
  • High-Pressure Performance: Handles up to 3,000 psi, ideal for thick or abrasive materials
  • Wide Viscosity Range: Dispenses materials up to 1,000,000 cps—including silicones and urethanes
  • Adjustable Power Factor: Tune the system from 5:1 to 40:1 for optimal material control
  • Self-Priming System: No manual priming required—quick startup and smooth operation
  • Pneumatic Powered: Runs off shop air with reliable performance and easy maintenance
  • 5-Gallon Feed with Follower Plate: Consistent material feed with minimal waste
  • Supports Abrasive Materials: Built to handle tough formulations
  • Customizable Drive System: Available with 6" or 8" air cylinders, optional pneumatic ram or elevator

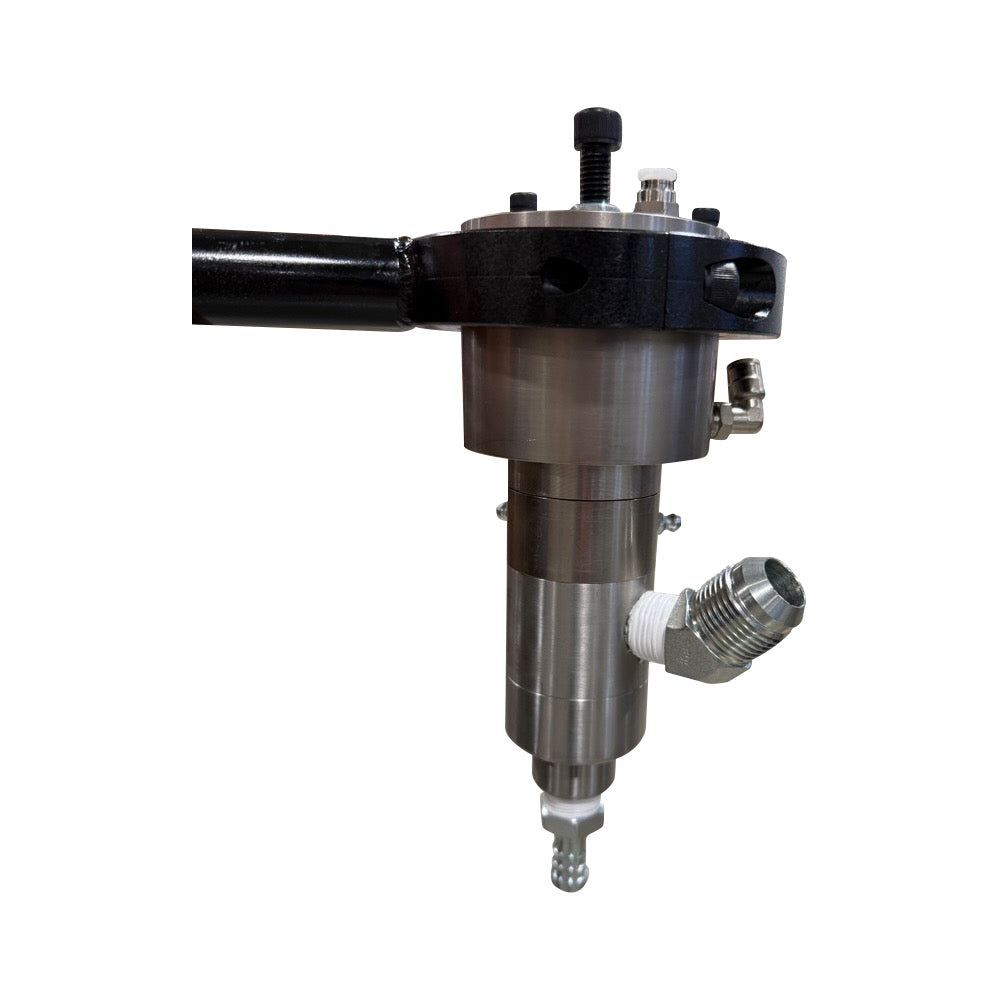

  • Flexible Dispense Options: Manual or automatic manifolds, fixed or hand-held

Specifications

  • Model: SE-5
  • Drive System: 6" or 8" diameter pneumatic air cylinder
  • Output: Up to 0.5 GPM
  • Shot Size: Up to 0.25 gallons per stroke
  • Stroke Length: Up to 6" per cycle
  • Cycle Rate: Up to 20 cycles per minute
  • Accuracy: Within ±2% of shot volume
  • Power Factor Ratio: Adjustable from 5:1 to 40:1
  • Viscosity Range: 1 to 1,000,000 cps
  • Fluid Pressure: Up to 3,000 psi
  • Power Requirement: 6 cfm @ 90 psi
  • Container Capacity: 5-gallon pails with follower plate
  • Dispense Options: Manual or automatic; fixed or hand-held manifolds
  • Optional Features: Pneumatic elevator, pneumatic ram, 9" stroke, power valves
  • System Dimensions: 16" W × 24" D × 48" H
  • System Weight: 200 lbs

Common Compatible Materials

  • Acrylics
  • Polyurethane
  • Silicone
  • ASI-RTV Silicone
  • Bell-Ray Waterproof Grease
  • Bluesil V-612
  • Bostik 1100FS Urethane
  • Dow Corning 832
  • Dow PV-803
  • Henkel Gasket Sealant
  • Indusol CH00631
  • Kyodo Yushi Raremax AF-1 Grease
  • Magnolia 121-146
  • Pigment
  • Plastisol
  • Polysulfide Accelerator
  • Resinlab W010510-3
  • Reynolds 154-36C SCU
  • Royal Adhesives Silicone
  • Royal Polysulfide
  • Wisdom Adhesives W3371
  • Contact us to see if your material is compatible

Trade in Old Equipment

If your AST equipment is beyond repair, we want to help. If you meet the requirements, you can trade in your old machine and get $1,000 or more off a new piece of equipment like the SP 55, GMP 025, SP 5, or SOC 050.

Contact us to see if you qualify.

Questions about AST SE-5? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

About AST Equipment

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
