Benchtop Dispensing Robot for Fluid and Adhesive Materials

Roll over image to zoom in Click on image to zoom

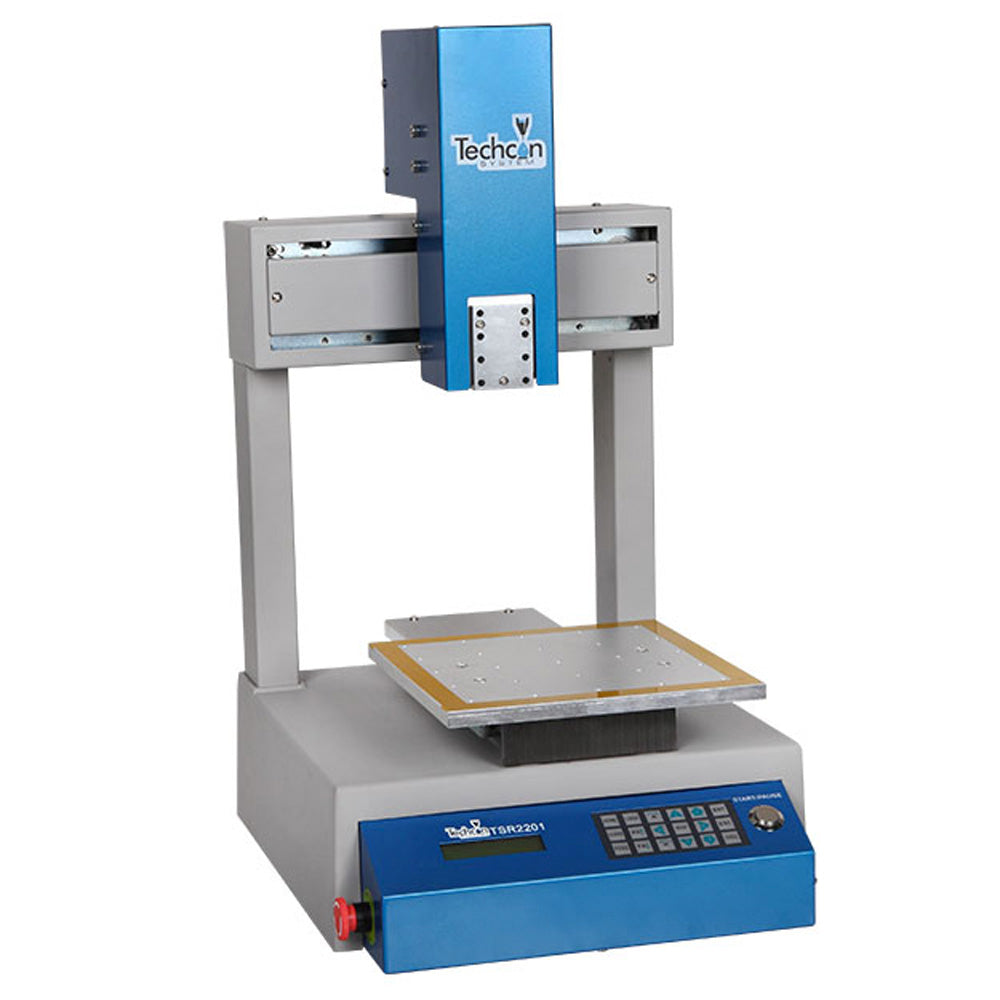

Techcon TSR2201 Benchtop Fluid and Adhesive Dispensing Robot

SKU: TECHCON TSR2201

When to Use the Techcon TSR2201 Benchtop Dispensing Robot

This benchtop robot is great for dispensing a wide range of fluid and adhesive materials. It offers a small footprint and is easy to program and operate. The Techcon TSR2201 has a 200 X 200mm working area making it the smallest of the TSR2000 Series fluid dispensing systems.

The TSR2201 excels in potting, encapsulating, bonding and coating applications.

All of the Techcon TSR2000 Series Benchtop Robots

Techcon TSR2201: 200mm X 200mm Working Area
Techcon TSR2301: 300mm X 300mm Working Area
Techcon TSR2401: 400mm X 400mm Working Area

Details

The Techcon TSR2201 dispensing robot was designed for dispensing single component fluid and adhesive materials. It offers total control over the dispensing location and can extrude in lines, beads, dots and arcs.

Features of the Techcon TSR 2201 Benchtop Robot

Simple to program and operate
Compatible with industry standard valves and syringes
Industrial design and construction

Common Applications

Solder Paste Dispensing
Gasketing
Filling
Potting
Encapsulating
Bonding
Coating

Specifications

Features	TSR2201	TSR2301	TSR2401
Power Supply	100V ~ 240V AC
Power Consumption	80W
Number of Controllable Axes	3 axis
Moving Range	X axis	200mm	300mm	400mm
Y axis	200mm	300mm	400mm
Z axis	100mm	100mm	100mm
Speed Range	X/Y axis	0.1~600 mm/sec
Z axis	0.1~200 mm/sec
Repeatability Accuracy	X/Y/Z axis	0.02mm
Resolution	X/Y/Z axis	0.01mm
Loading Weight	Tool	5 Kg	7 Kg	7 Kg
Head	2 Kg	4 Kg	4 Kg
Storage for Processing Files	Max. 255 files.
Working Ambient	Temperature	0~40℃
Relative Humidity	20%~90% (no condensation)
Dimension (W×D×H)	303x377x521 mm	418×513×521 mm	518×613×521 mm
